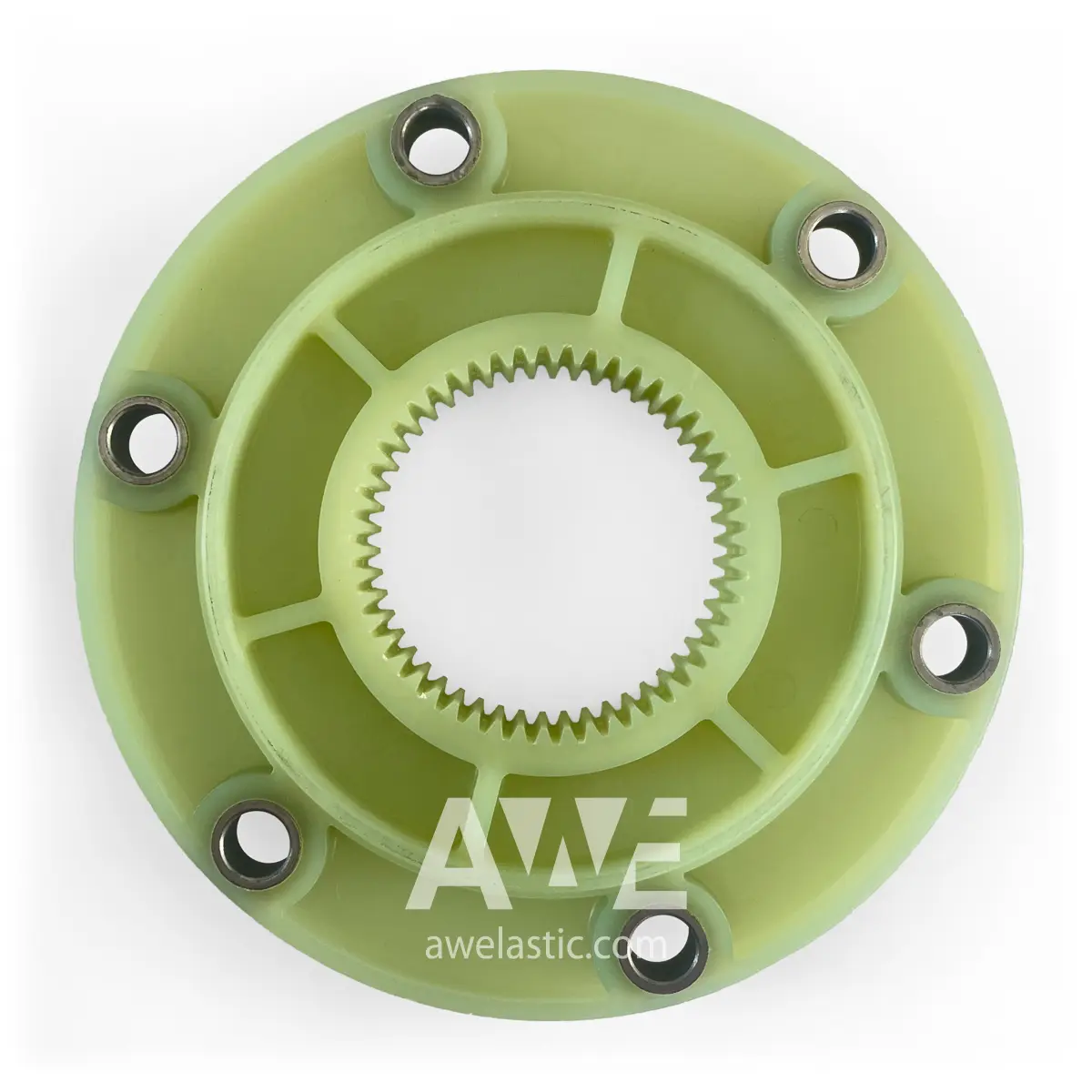

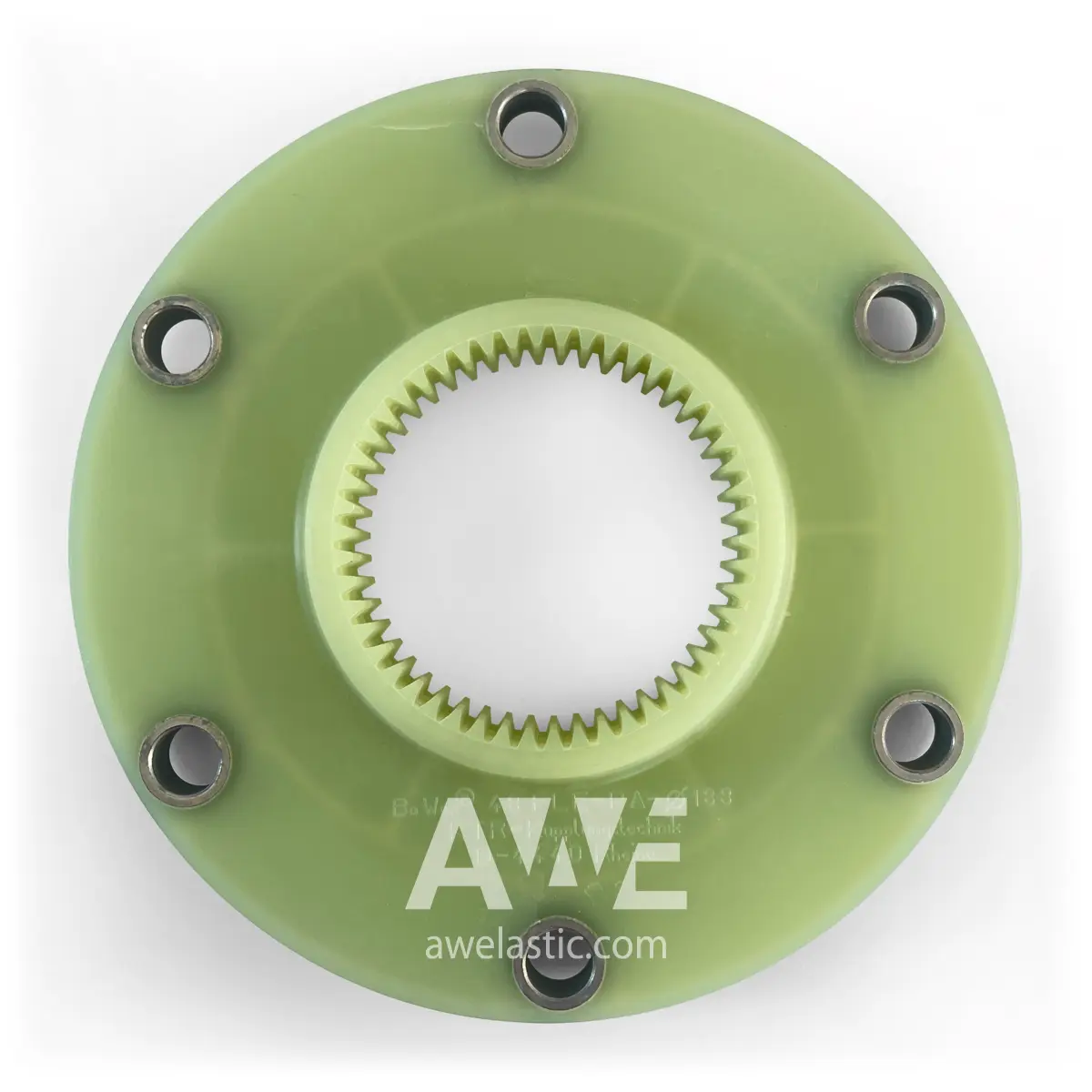

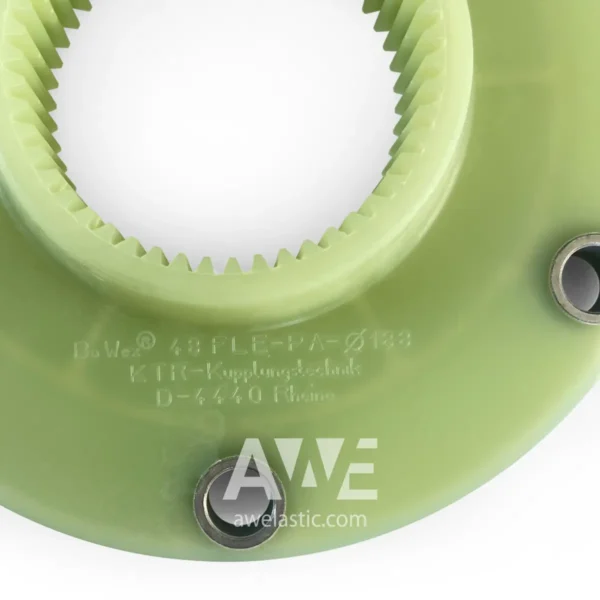

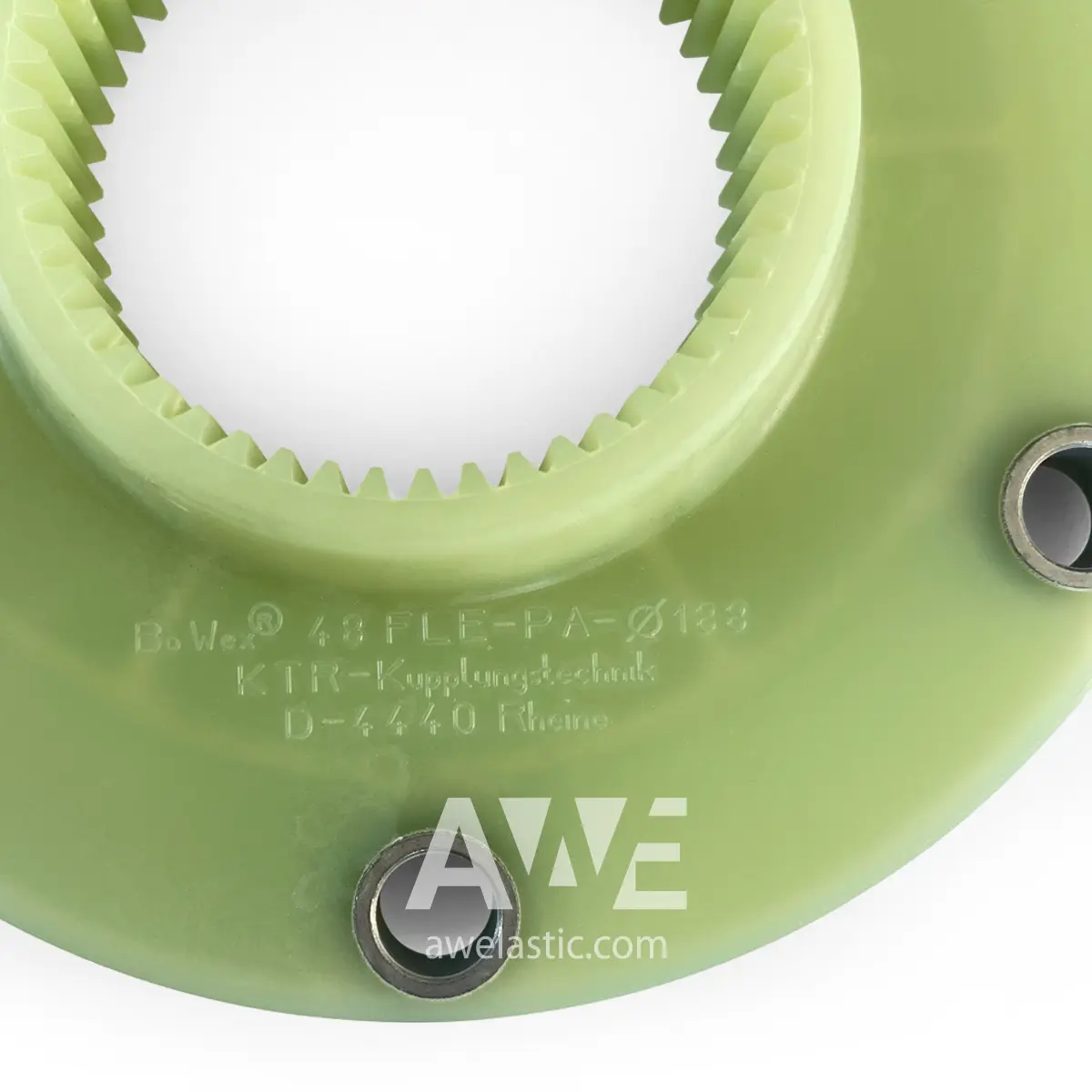

BoWex 48 FLE-PA flange Ø188 DO=Ø165 Z=6XØ13 outer centering Ø136G8 Flange/element
Original - genuine KTR BoWex FLE-PA coupling flange/element
BoWex FLE-PA couplings are torsionally rigid. Coupling flange is curved-tooth. Consisting of the material combination nylon/steel for diesel engine drives in combination with hydraulic pumps. The FLE-PA adapter flange consists of fibre-glass reinforced polyamide having a high mechanical strength and thermal stability. Steel hub of the coupling have an external curved toothing . BoWex FLE-PA couplings allow for an extremely short installation. It is easy to assemble with no need for additional alignment tools.
FEATURES:
- Torques from 240 to 5,300 Nm
- High torsion spring stiffness, resonance-free operation
- PA flange with high mechanical strength and heat stability
- Special connection flanges available
Bowex FLE-PA flanges are torsionally stiff curved-tooth flange couplings that are commonly used in diesel engine drives in combination with hydraulic pumps. The FLE-PA mounting flange consists of fiberglass reinforced polyamide with high mechanical strength and thermal stability.
Key features of Bowex FLE-PA flanges:
• Torsionally rigid
• Compact dimensions
• Suitable for I.C.-engines
• Combinable for axial, radial, and angular compensation
Benefits of using Bowex FLE-PA flanges:
• Reduced vibration and noise
• Improved efficiency
• Extended service life
Keywords: KTR-Kupplungstechnik; BoWex, FLE-PA, >PA6-GF25<, D-4440 Rheine, U.S. Patent 5586938
When you choose our KTR products in our e-shop, you’re not just getting spare parts; you’re investing in reliability and durability for your machinery.
We are ready to deliver components that go beyond industry standards, ensuring your industrial equipment runs at its best. With KTR, it’s not just a purchase—it’s a commitment to quality and performance, making us your trusted partner in the industry.
KTR Systems GmbH is a German company that specializes in power transmission technology. Company are known for manufacturing a wide range of high-quality products, including couplings, clutches, brakes, and hydraulic components. KTR products are commonly used in machinery and industrial applications to ensure efficient and reliable power transmission.
