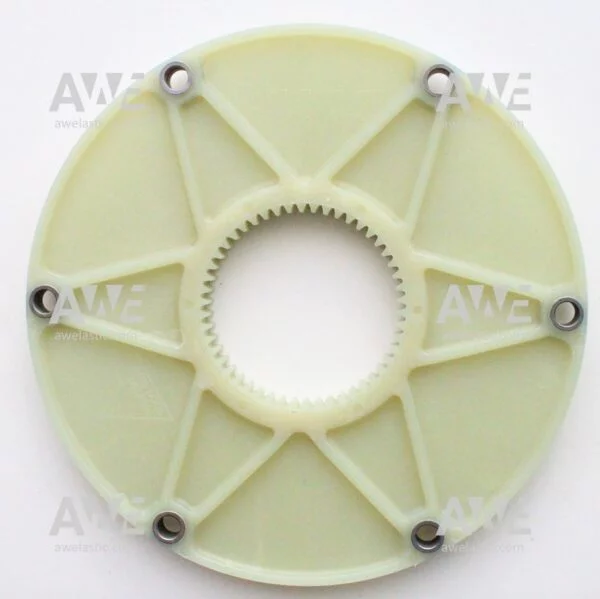

BoWex 48 FLE-PA flange Ø215,8 H8 DO=Ø200,02 Z=6XØ9 Flange/element
Original – genuine KTR BoWex FLE-PA coupling flange/element
BoWex FLE-PA couplings are torsionally rigid. Coupling flange is curved-tooth. Consisting of the material combination nylon/steel for diesel engine drives in combination with hydraulic pumps. The FLE-PA adapter flange consists of fibre-glass reinforced polyamide having a high mechanical strength and thermal stability. Steel hub of the coupling have an external curved toothing . BoWex FLE-PA couplings allow for an extremely short installation. It is easy to assemble with no need for additional alignment tools.
- Torques from 240 to 5,300 Nm
- High torsion spring stiffness, resonance-free operation
- PA flange with high mechanical strength and heat stability
- Special connection flanges available
