BoWex Elastic 42 HE Ø180

BoWex Elastic 42 HE Ø180 is a genuine KTR highly flexible coupling elastomer designed for flexible torque transmission in drive systems powered by diesel and other internal combustion engines. Typical applications include gearboxes, generator sets, compressors, pumps and other industrial or mobile machinery.

This is the standard BoWex Elastic 42 HE execution with an outside diameter of approximately Ø180 mm. It is used with the KTR HE1/HE2 coupling configuration and should be distinguished from SAE-specific BoWex 42 HE versions with larger flange diameters.

The highly flexible elastomer helps reduce torsional vibrations and shock loads while transmitting torque between the engine and driven equipment.

The BoWex Elastic 42 HE Ø180 is available in three Shore hardness variations:

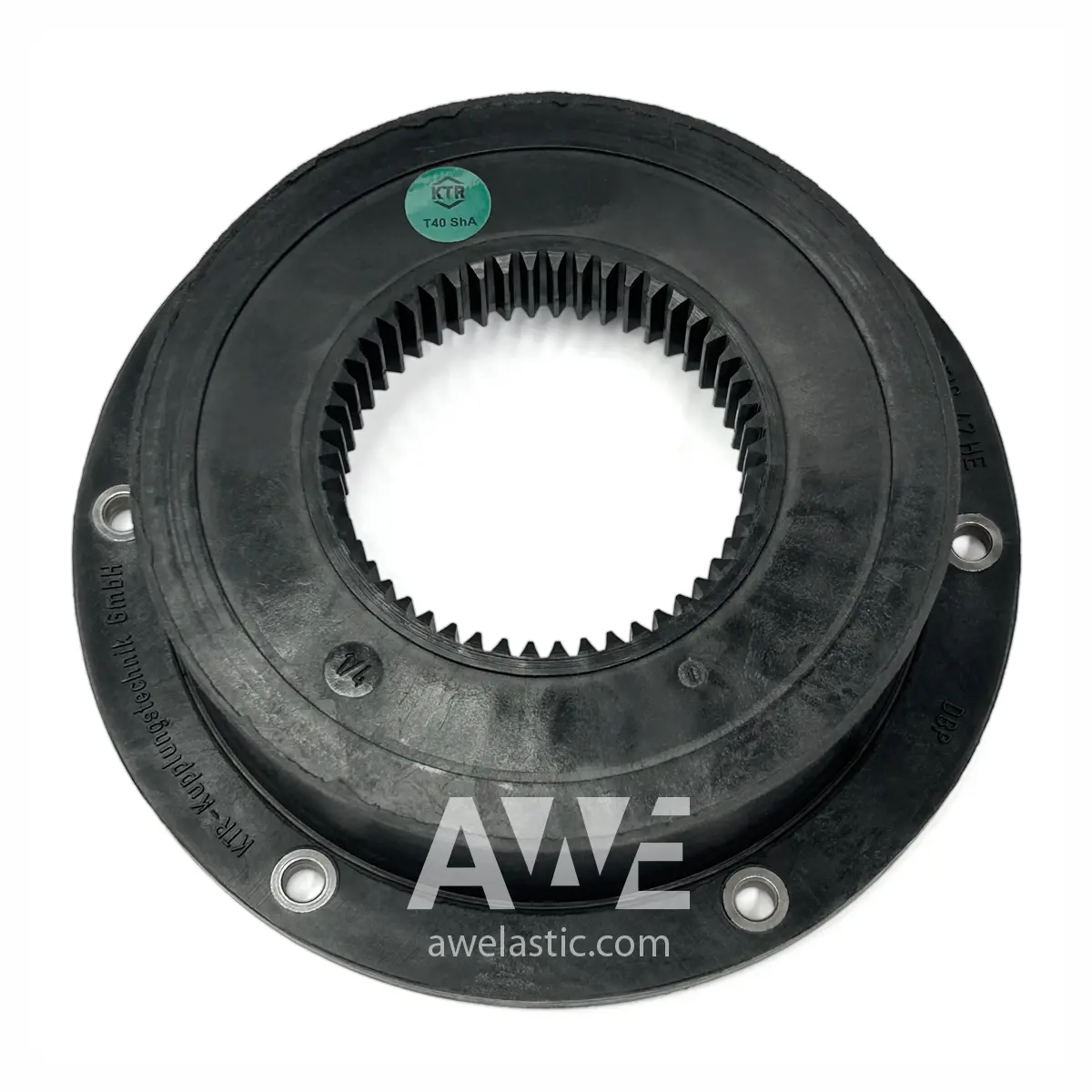

• T40 Shore A – KTR SKU 010420700004

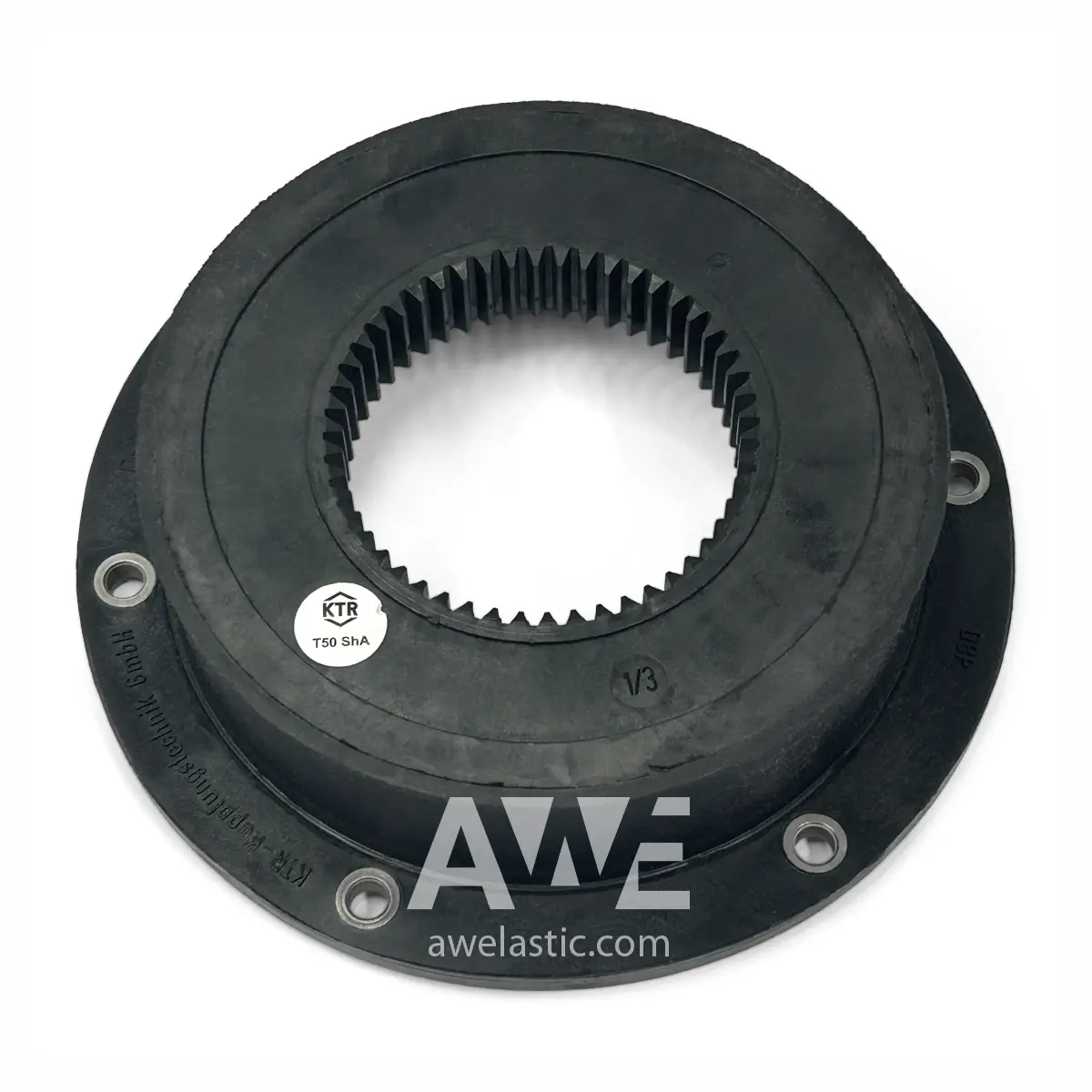

• T50 Shore A – KTR SKU 010420700005
• T65 Shore A – KTR SKU 010420700006

T40 provides the greatest torsional flexibility and softest response, T50 provides an intermediate characteristic, while T65 is considerably stiffer and provides the highest torque capacity of the three versions.

The correct Shore hardness should always be selected according to the original coupling specification and the torsional requirements of the drivetrain. Components with identical external dimensions but different Shore hardnesses should not automatically be considered interchangeable.

Technical data

• Manufacturer: KTR
• Product series: BoWex Elastic
• Coupling size: BoWex Elastic 42 HE
• Execution: HE1 / HE2
• Outside diameter: Ø180 mm
• Available hardnesses: T40, T50 and T65 Shore A
• Maximum permissible operating speed: 6,200 rpm

KTR manufacturer SKUs:

• T40 Shore A: 010420700004
• T50 Shore A: 010420700005
• T65 Shore A: 010420700006

Nominal torque TKN:

• T40 Shore A: 130 Nm
• T50 Shore A: 150 Nm
• T65 Shore A: 180 Nm

Maximum torque TK max:

• T40 Shore A: 390 Nm
• T50 Shore A: 450 Nm
• T65 Shore A: 540 Nm

Alternating torque TKW at 10 Hz:

• T40 Shore A: 39 Nm
• T50 Shore A: 45 Nm
• T65 Shore A: 54 Nm

Dynamic torsional stiffness:

• T40 Shore A: approx. 550 Nm/rad
• T50 Shore A: approx. 850 Nm/rad
• T65 Shore A: approx. 2,700 Nm/rad

The different Shore hardnesses provide substantially different torsional characteristics. Correct selection is therefore important for damping, torsional vibration behaviour and reliable operation of the complete drivetrain.

Typical applications

BoWex Elastic highly flexible couplings are commonly used in engine-driven systems including:

• Generator sets
• Industrial gearboxes
• Compressors
• Pumps and hydraulic drives
• Construction and mobile machinery
• Agricultural and forestry machinery
• Marine and auxiliary drive systems
• Other diesel and internal combustion engine applications

Identification before ordering

Please compare the BoWex size, Ø180 mm outside diameter, Shore hardness, KTR SKU and visible markings with the currently installed coupling before ordering.

Original KTR components may carry markings such as:

KTR Kupplungstechnik
D-48407 Rheine
BoWex 42 HE
T40, T50 or T65 Shore A

The marking KTR Kupplungstechnik D-48407 Rheine identifies the manufacturer and can be useful when searching for an original replacement, but it does not by itself establish the exact coupling version or Shore hardness.

The KTR manufacturer article number is particularly useful for confirming the required variation:

• 010420700004 – T40 Shore A
• 010420700005 – T50 Shore A
• 010420700006 – T65 Shore A

If the exact BoWex Elastic version is uncertain, send us clear photos of the complete coupling, visible markings and measured dimensions. AWELTA can assist with identification of the correct replacement.

Supply: new, genuine KTR product.
