Centaflex 4AS coupling CF-A-004-0-S-50 is a torsionally soft OEM elastic coupling developed by CENTA Germany for micro-mechanical and compact automation systems requiring vibration isolation, alignment tolerance, and long-term reliability.
Its Type 0-S (pin connection) allows controlled axial float, reducing assembly stress and simplifying maintenance in confined layouts.
The 50 Shore natural-rubber compound provides exceptional damping and flexibility, protecting sensitive components and ensuring stable performance even at high speed.
The 50 Shore natural-rubber compound provides exceptional damping and flexibility, protecting sensitive components and ensuring stable performance even at high speed.
Technical Specifications
• Nominal torque (TKN): 0.05 kNm
• Maximum torque (TKmax): 0.14 kNm
• Continuous vibratory torque (TKW): 0.02 kNm
• Maximum speed: 7000 rpm
• Temperature range (natural rubber): –45 °C to +80 °C
• Shore hardness: 50 Shore A
• Connection type: Type 0-S – pin connection
• ATEX certification: available on request
• Maximum torque (TKmax): 0.14 kNm
• Continuous vibratory torque (TKW): 0.02 kNm
• Maximum speed: 7000 rpm
• Temperature range (natural rubber): –45 °C to +80 °C
• Shore hardness: 50 Shore A
• Connection type: Type 0-S – pin connection
• ATEX certification: available on request
Typical Applications
• Precision automation and robotics
• Laboratory instruments and test rigs
• Miniature hydraulic and pneumatic drives
• Small electric motors and pumps
• Marine and control devices
• Laboratory instruments and test rigs
• Miniature hydraulic and pneumatic drives
• Small electric motors and pumps
• Marine and control devices
Fitment Type
Type 0-S (Pin Connection) – CENTA’s axial-float system providing limited axial movement and alignment flexibility for compact and precision drives.
OEM Manufacturing Quality
Each CF-A-004-0-S-50 element is manufactured under CENTA Germany’s ISO-certified production standards, ensuring durability and mechanical precision.
OEM quality ensures:
• OEM-verified torsional stiffness and TVA-validated damping curve
• Dimensional accuracy and balance control
• Stable operation under continuous vibration and thermal variation
OEM quality ensures:
• OEM-verified torsional stiffness and TVA-validated damping curve
• Dimensional accuracy and balance control
• Stable operation under continuous vibration and thermal variation
Why Choose Original CENTA Couplings
Aftermarket copies often lack correct hardness and dynamic stiffness, causing resonance and early fatigue.
Only genuine CENTA Germany couplings deliver OEM-defined torsional behavior and long-term reliability validated through Torsional Vibration Analysis (TVA).
Only genuine CENTA Germany couplings deliver OEM-defined torsional behavior and long-term reliability validated through Torsional Vibration Analysis (TVA).
Identification and Patents

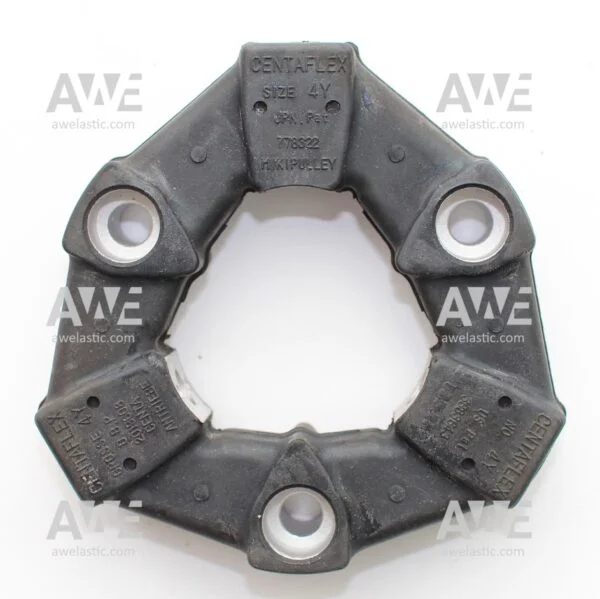

All authentic CENTAFLEX A elements bear D.B.P. 2019608 and JAP.Pat. 778322, verifying OEM authenticity and patent protection. Learn more in our technical article available under BLOG : Understanding D.B.P. 2019608 and JAP.Pat. 778322 on your Centaflex A Coupling.
Further Documentation
Availability and Ordering
AWELASTIC.com supplies only new, original OEM CENTA couplings from German stock with fast worldwide delivery and professional B2B support.
Product code: CF-A-004-0-S-50 | Type 0-S (pin connection) | Material: Natural Rubber 50 Shore A | Origin: Germany.
Product code: CF-A-004-0-S-50 | Type 0-S (pin connection) | Material: Natural Rubber 50 Shore A | Origin: Germany.
Keywords
Centaflex 4AS coupling; CF-A-004-0-S-50; 4AS coupling; OEM Centaflex Germany; 2019608; 778322; Centaflex pin connection; Centaflex A 50 Shore; CENTA flexible coupling A 4AS; laboratory coupling; automation drive coupling; original vs copy Centaflex.
Additional information
| Weight | 0.18 kg |
|---|---|
| Dimensions | 15 × 15 × 5 cm |
| Centaflex A Type | |
| Centaflex A Size | |
| Centaflex A Shore | 60 |
| Material | |
| Temperature Range | –45 °C to +80 °C |
| Manufacturer | |
| Country of origin | Germany |
| Condition | OEM New |
