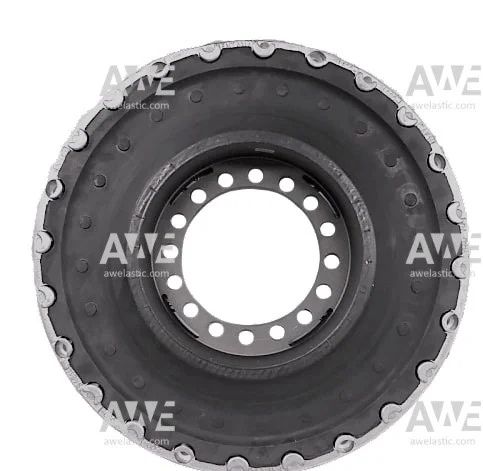

Centa Centamax CM-1800-SA/SB Elastic element

760.00

Centamax CM-1800-SA/SB Elastic element

On Request (1-2 weeks)

Available in different shore hardness

  • CM-S-1800-SB-50

  • CM-S-1800-SB-60

SKU: CM01800S Categories: ,

Original genuine Centa Centamax Size 1800 Type SA/SB Elastic element // Centamax CM-1800-SA/SB Elastic element

Being a robust coupling with high torsional flexibility, CENTAMAX is the best choice for a safe resonance-free operation of drives susceptible to torsional vibration. The torsional elasticity of this steady selling design shifts critical resonances below operation speed. The drive thus is subject to minor continuous vibratory torques, protecting coupled units.

The CENTAMAX convinces by efficient ventilation: the high thermal capacity (HTC) design features a superior allowable power loss compared to conventional couplings. This not only ensures a long lifetime, but also the use of smaller cost effective coupling sizes in many cases.

Areas of Application:

  • Industry applications
  • Marine propulsion
  • Power generation
  • Industrial applications

Features:

  • Robust
  • High flexibility with linear characteristics
  • High allowable power loss
  • Available with fail safe device

Torque range: 0.1 to 45 kNm

Elastic material: Natural Rubber/Silicone/CENTALAN HT

Temperature range:

Natural Rubber – 45° to + 80°C

Silicone – 45° to + 120°C

CENTALAN HT –25° to +100°C

Additional information

Weight9.2 kg
Dimensions35 × 35 × 15 cm
Centamax Shore

50, 60

×
