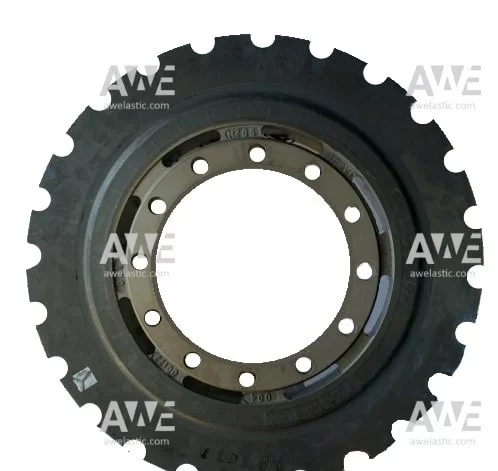

Original genuine Centa Centamax Size 18000 Type SCE Elastic element // Centamax CM-18000-SCE Elastic element
Being a robust coupling with high torsional flexibility, CENTAMAX is the best choice for a safe resonance-free operation of drives susceptible to torsional vibration. The torsional elasticity of this steady selling design shifts critical resonances below operation speed. The drive thus is subject to minor continuous vibratory torques, protecting coupled units.
The CENTAMAX convinces by efficient ventilation: the high thermal capacity (HTC) design features a superior allowable power loss compared to conventional couplings. This not only ensures a long lifetime, but also the use of smaller cost effective coupling sizes in many cases.
Areas of Application:
- Industry applications
- Marine propulsion
- Power generation
- Industrial applications
Features:
- Robust
- High flexibility with linear characteristics
- High allowable power loss
- Available with fail safe device
Torque range: 0.1 to 45 kNm
Elastic material: Natural Rubber/Silicone/CENTALAN HT
Temperature range:
Natural Rubber – 45° to + 80°C
Silicone – 45° to + 120°C
CENTALAN HT –25° to +100°C
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Centamax Shore | 50, 60, 70, 72, 75, 80 |
