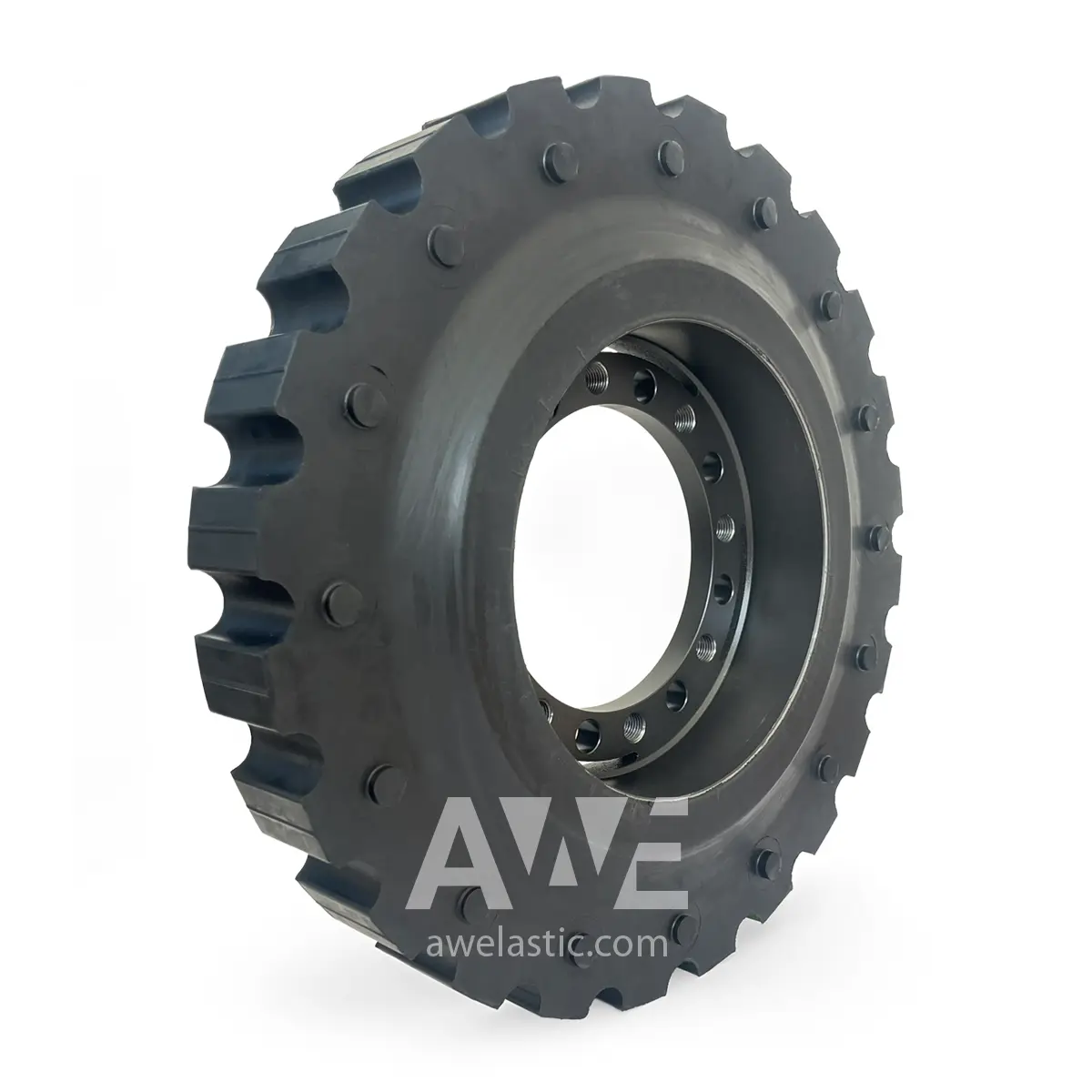

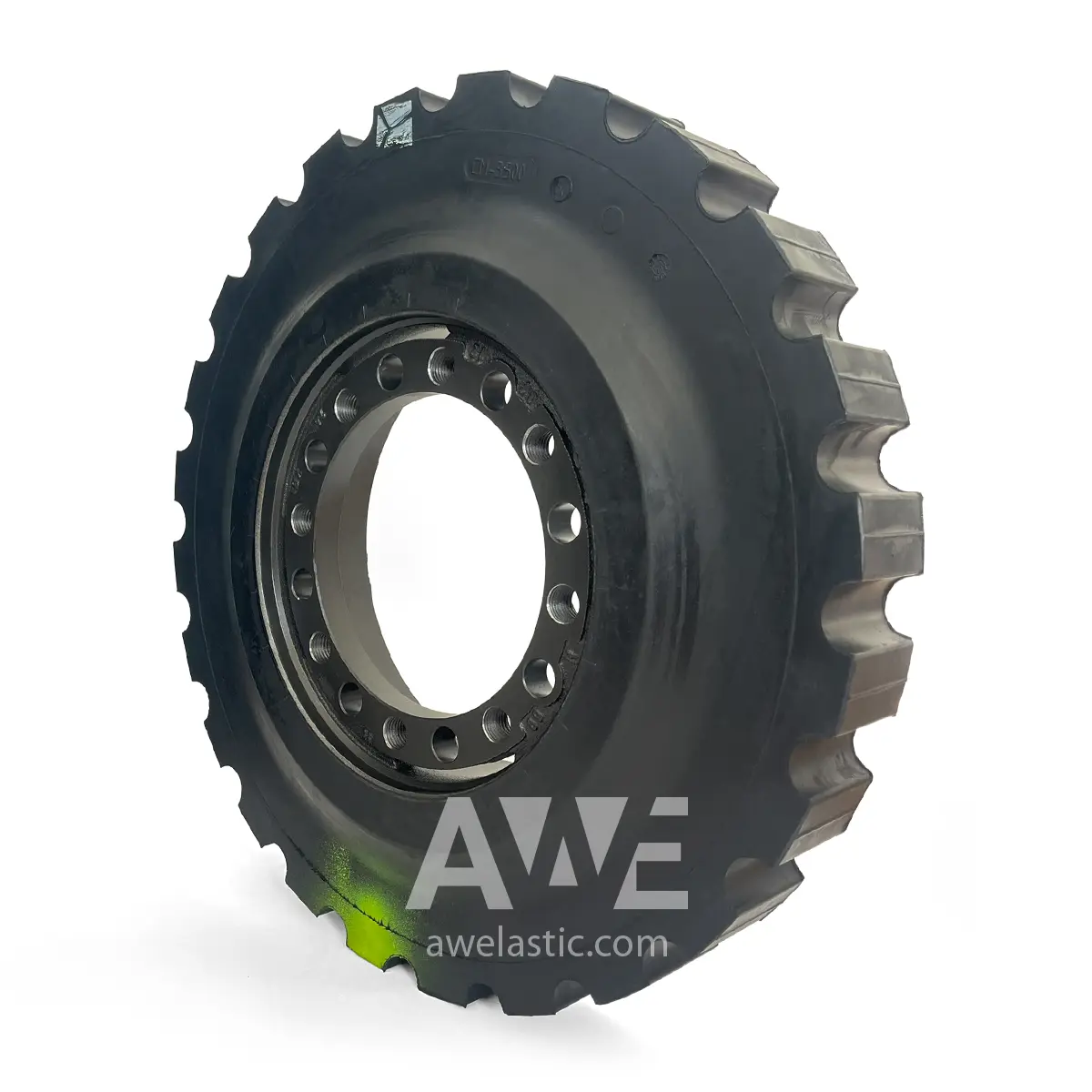

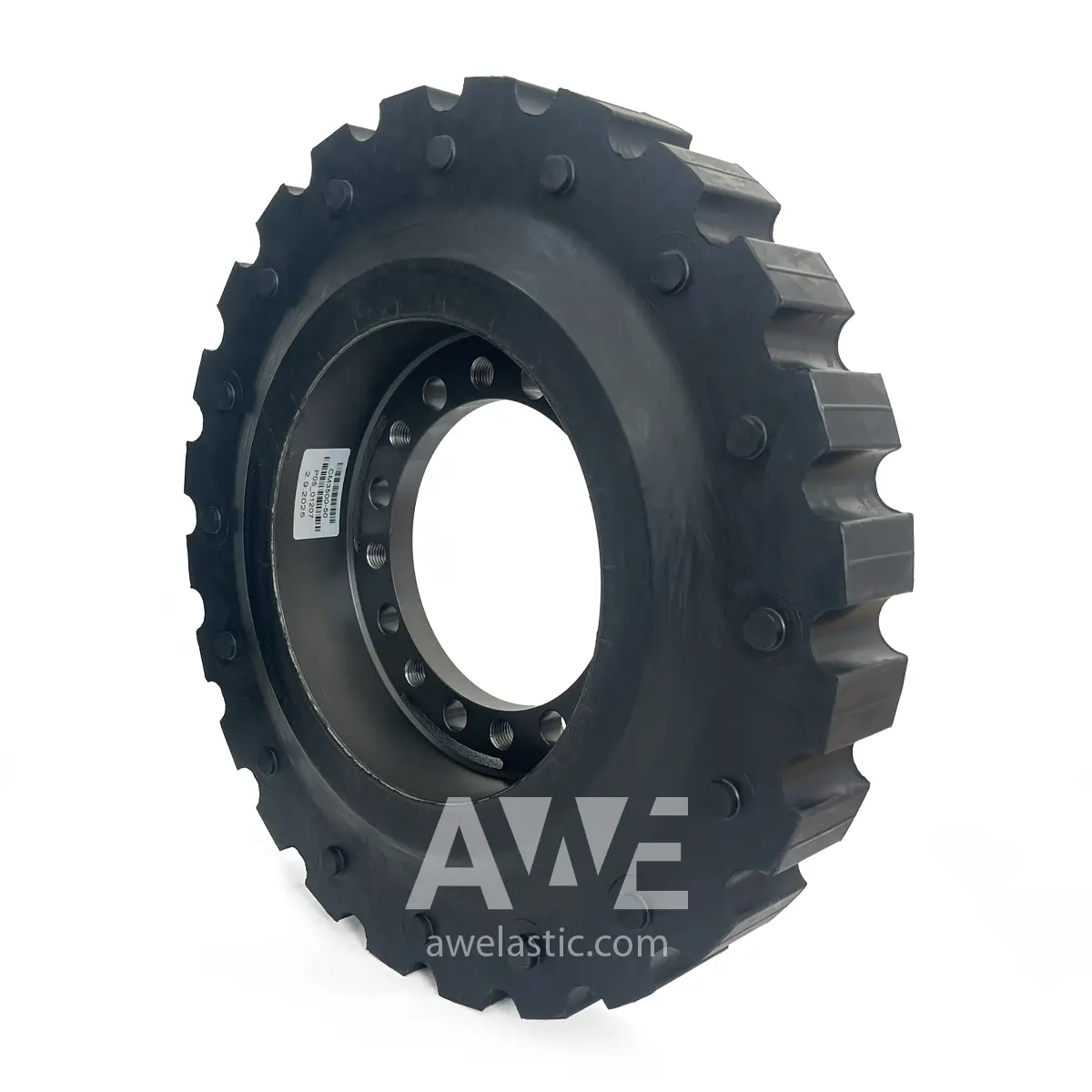

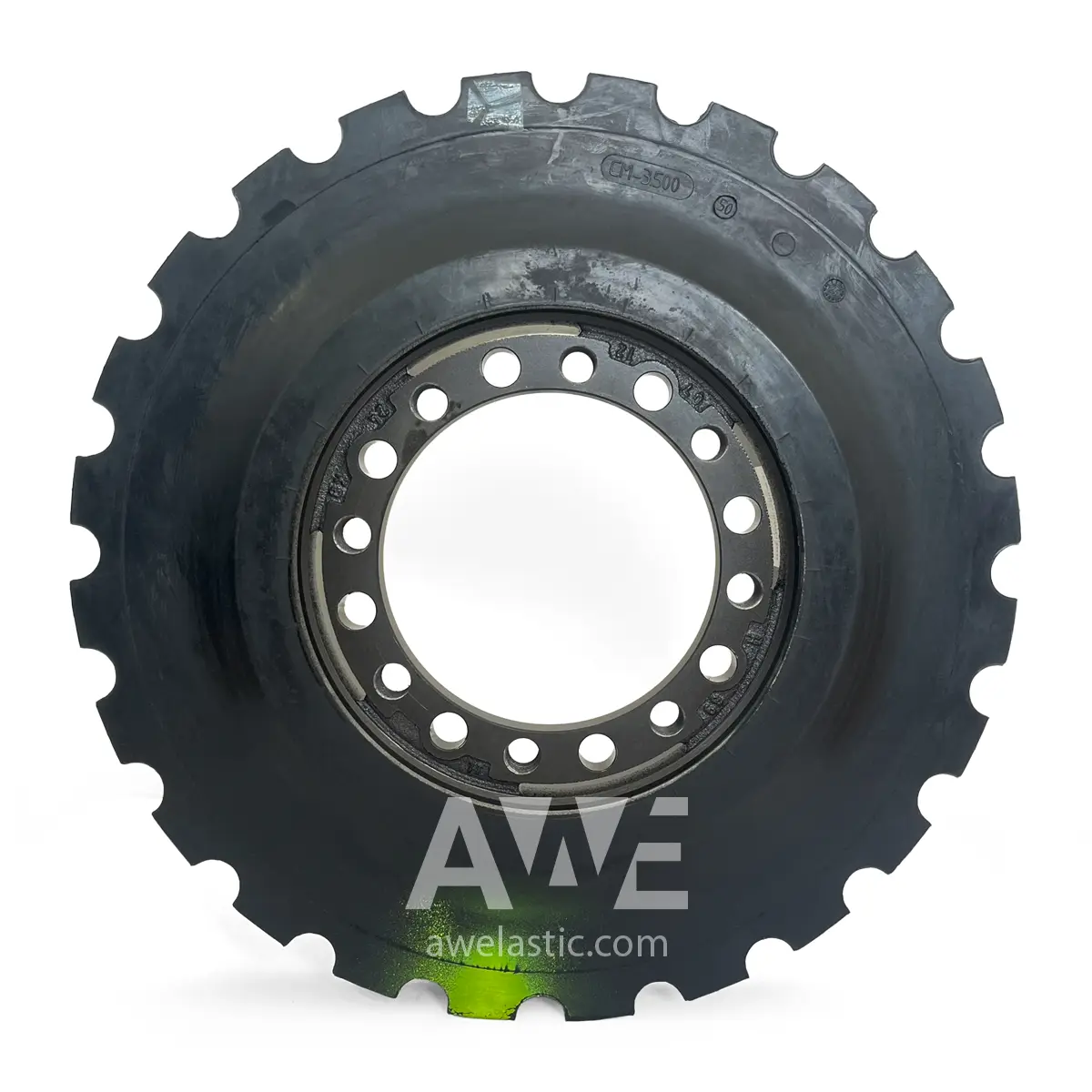

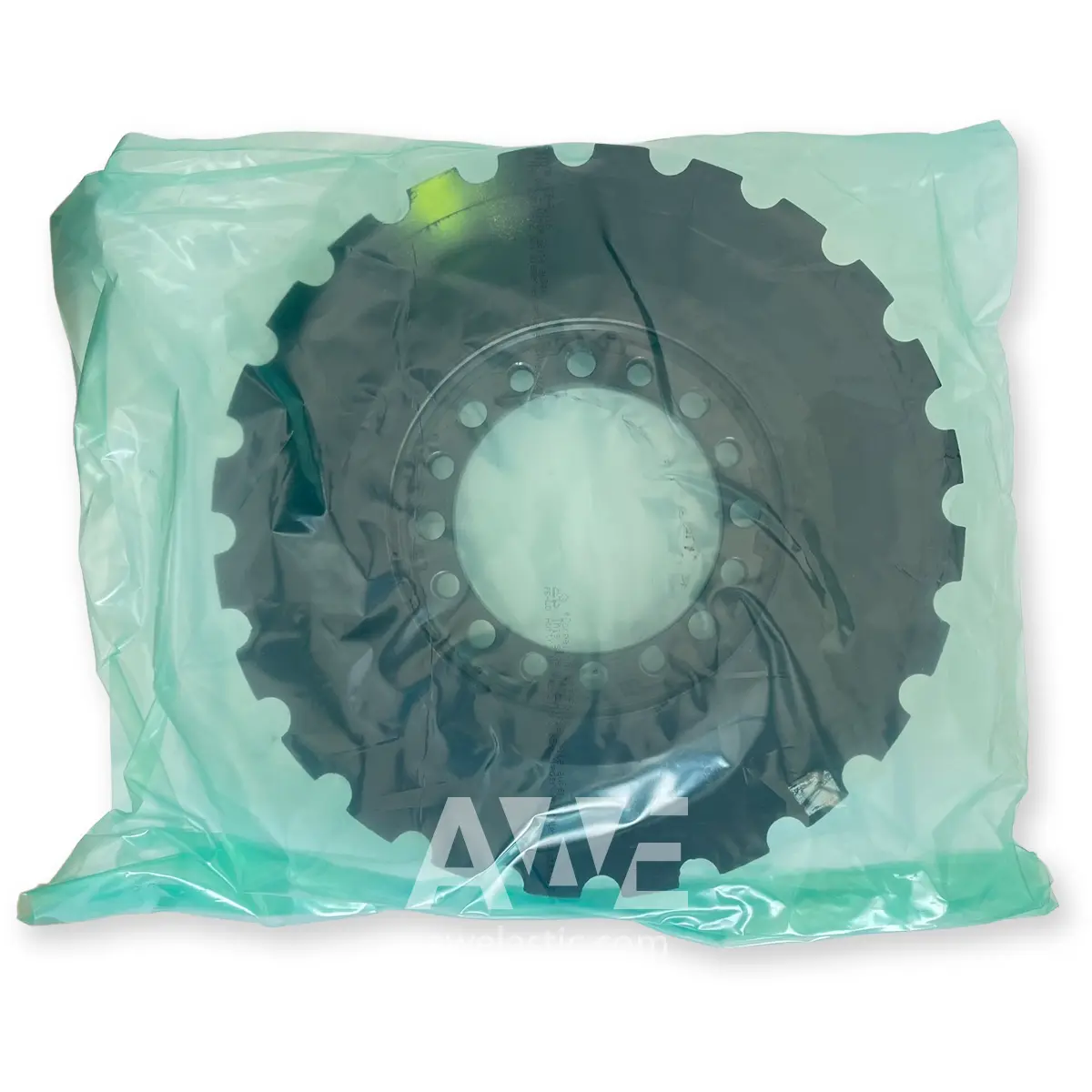

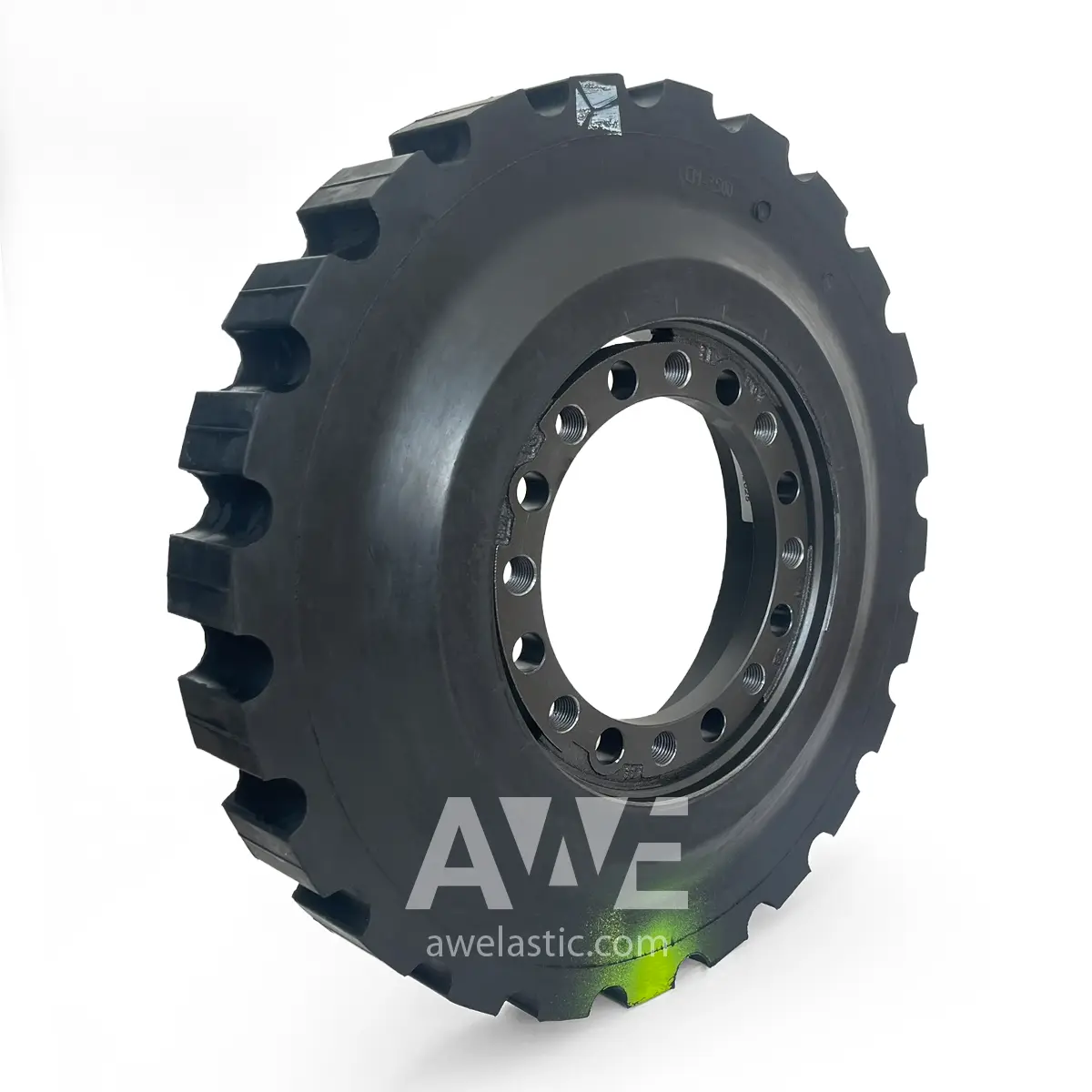

CENTAMAX 3500 Coupling | CENTA CM-3500-SCE | OEM Threaded Coupling for Marine and Industrial Gensets
The CENTAMAX 3500 NR Type SCE is a heavy-duty torsionally soft coupling element designed for diesel engines in marine, generator, and industrial drive systems. Built from premium natural rubber (NR), it provides high torque transmission, vibration damping, and misalignment compensation, ensuring long-term protection of engines, gearboxes, and driven machinery.
Unlike the SC version, the SCE type features threaded fitment holes in the element itself, allowing bolts to be tightened directly into the coupling element from the hub side. This mounting design is required in certain OEM installations, offering an alternative fitment option while maintaining identical torque and performance values.
We supply only new, genuine OEM CENTAMAX CM-3500 SCE elastic elements, with stock available for immediate worldwide delivery.
Technical Specifications (CENTAMAX Size 3500 NR / CM-3500 SCE)
- Available Shore Hardness: 50, 60, 70
- Nominal Torque (Tₖₙ): 3,200–3,800 Nm (depending on Shore)
- Maximum Torque (Tₖₘₐₓ): 6,500–8,500 Nm (depending on Shore)
- Max Speed (nₘₐₓ): 3,000 rpm
- Temperature Range (NR): –45 °C to +80 °C
- Material: Natural Rubber (NR), black color
- Flywheel Standard: SAE J620 – typically SAE 14 or SAE 18
- Design: Type SCE – Plug-in elastic element with threaded mounting holes
Fitment Type: SCE – Threaded Hole Mounting
- All mounting holes are threaded in the element itself
- Bolts are tightened into the rubber element from the hub side
- Same torque, damping, and reliability as SC version
- Selection depends on engine mounting design or OEM specification
Applications of CENTAMAX 3500 coupling Type SCE
- Marine Generator Sets: Installed in mid-sized vessel gensets requiring threaded fitment
- Industrial Power Units: Used in compressors, pumps, and processing machinery
- Construction & Heavy Equipment: Suitable for torque-intensive mobile equipment
- Stationary Diesel Gensets: Ensures stable coupling in medium-duty generator systems
Why Choose Original CENTAMAX 3500 coupling SCE?
- OEM-Approved Fitment – Required in specific CAT and industrial engine applications
- Same Strength as SC – Identical torque and damping properties, only fitment differs
- New & In Stock – Genuine CM-3500 SCE elements available for immediate shipping
- Durability & Safety – Original CENTA rubber compounds ensure long service life
Keywords:
CENTAMAX 3500 SCE coupling; CM-3500-50 SCE; CM-3500-60 SCE; CM-3500-70 SCE; threaded hole rubber element size 3500; OEM CENTAMAX SCE coupling; generator elastic element CM-3500 SCE; SAE 18 threaded coupling element
Additional information
| Weight | 13.20 kg |
|---|---|
| Dimensions | 45 × 45 × 20 cm |
| Size | |
| Fitment | |
| Material | |
| Centamax Shore Hardness | 50, 60, 70 |
| Temperature Range | –45 °C to +80 °C |
| Manufacturer | |
| Country of origin | Germany |
| Condition | OEM New |
