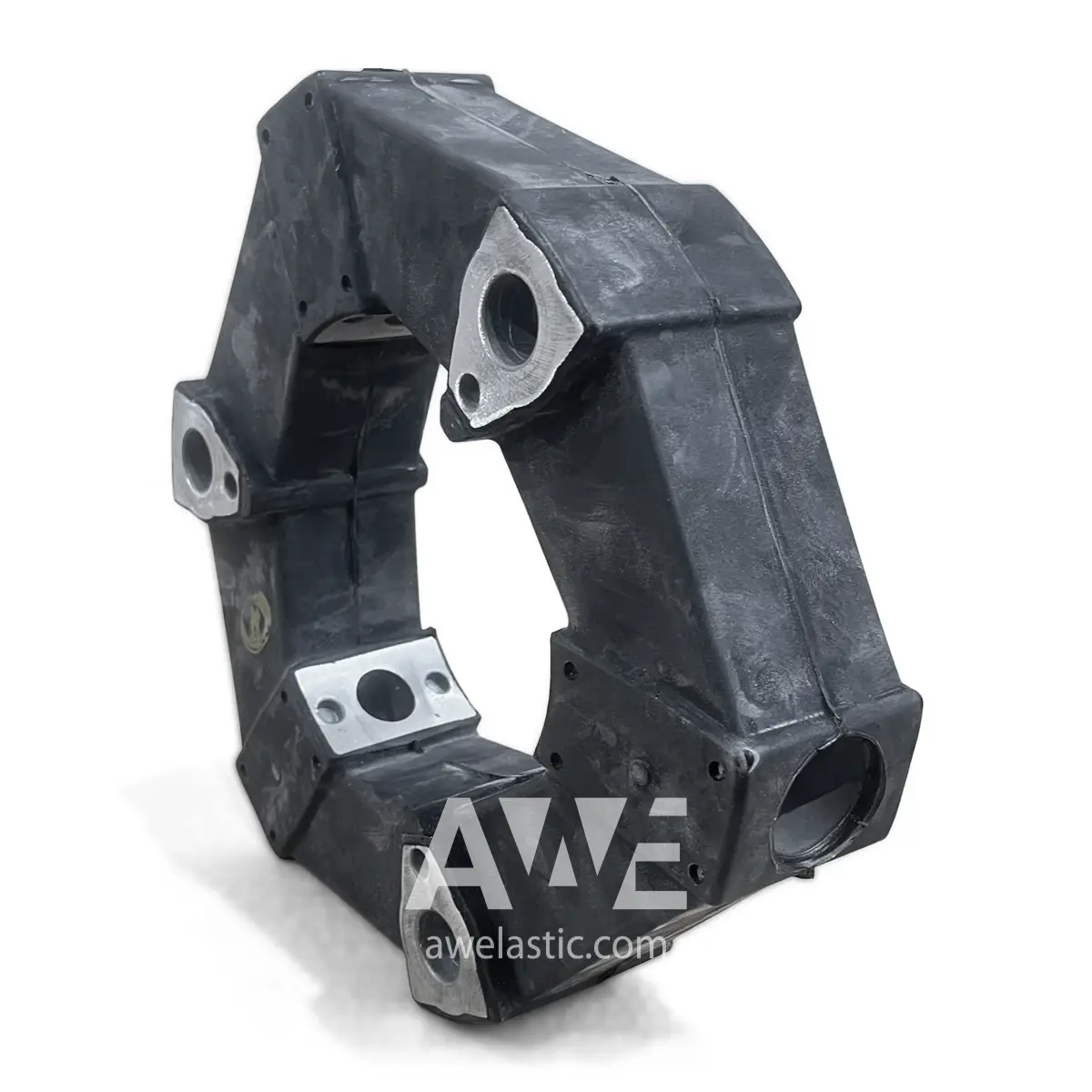

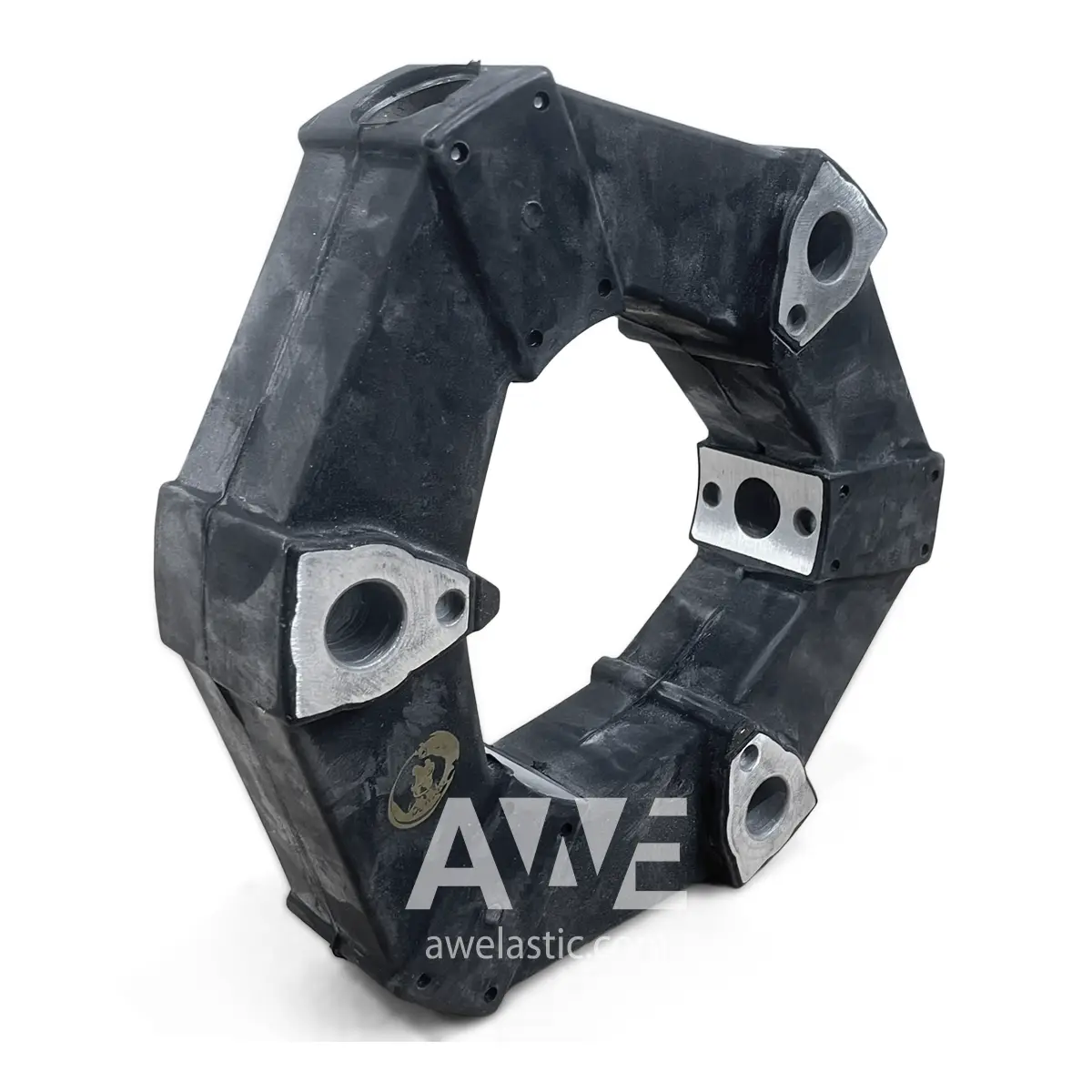

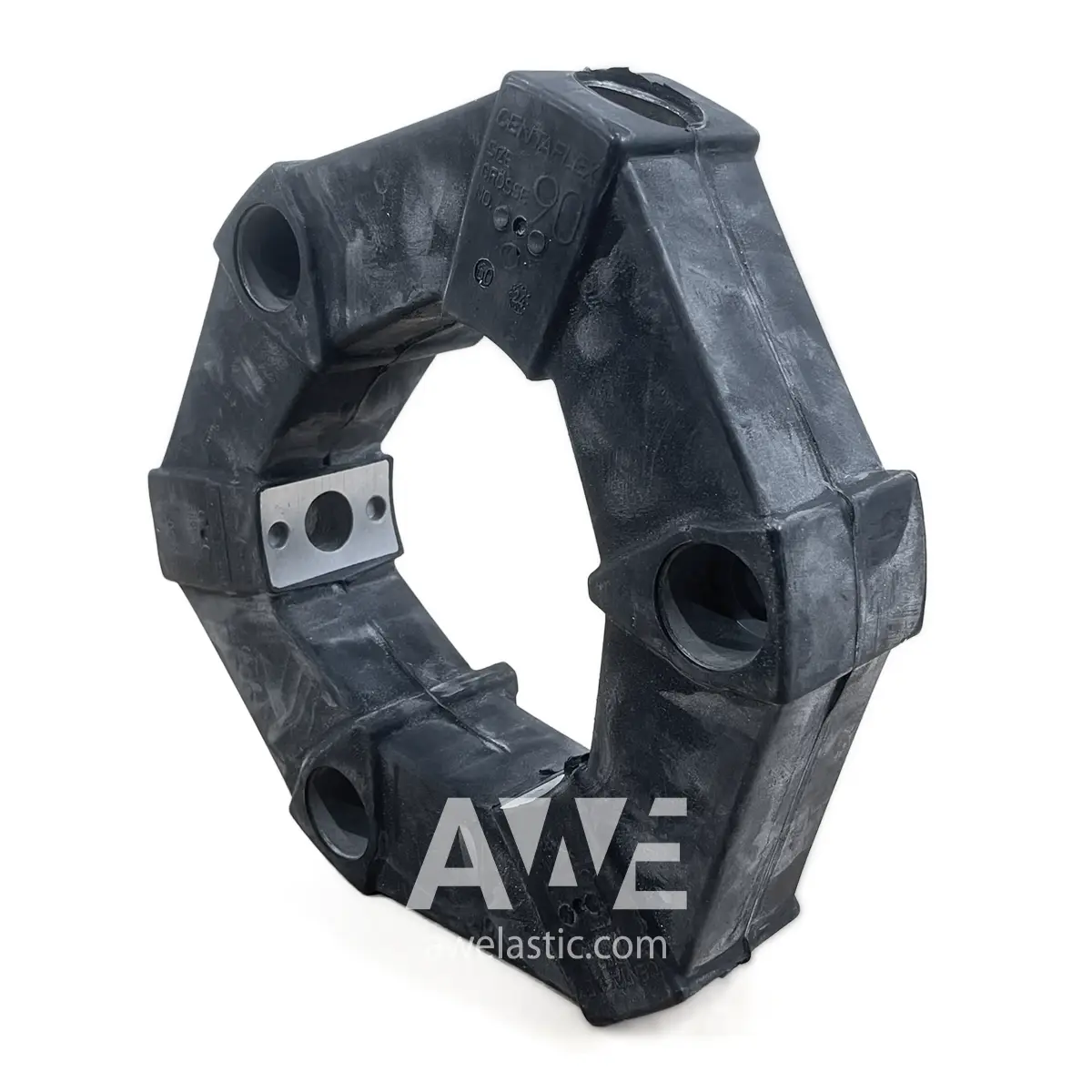

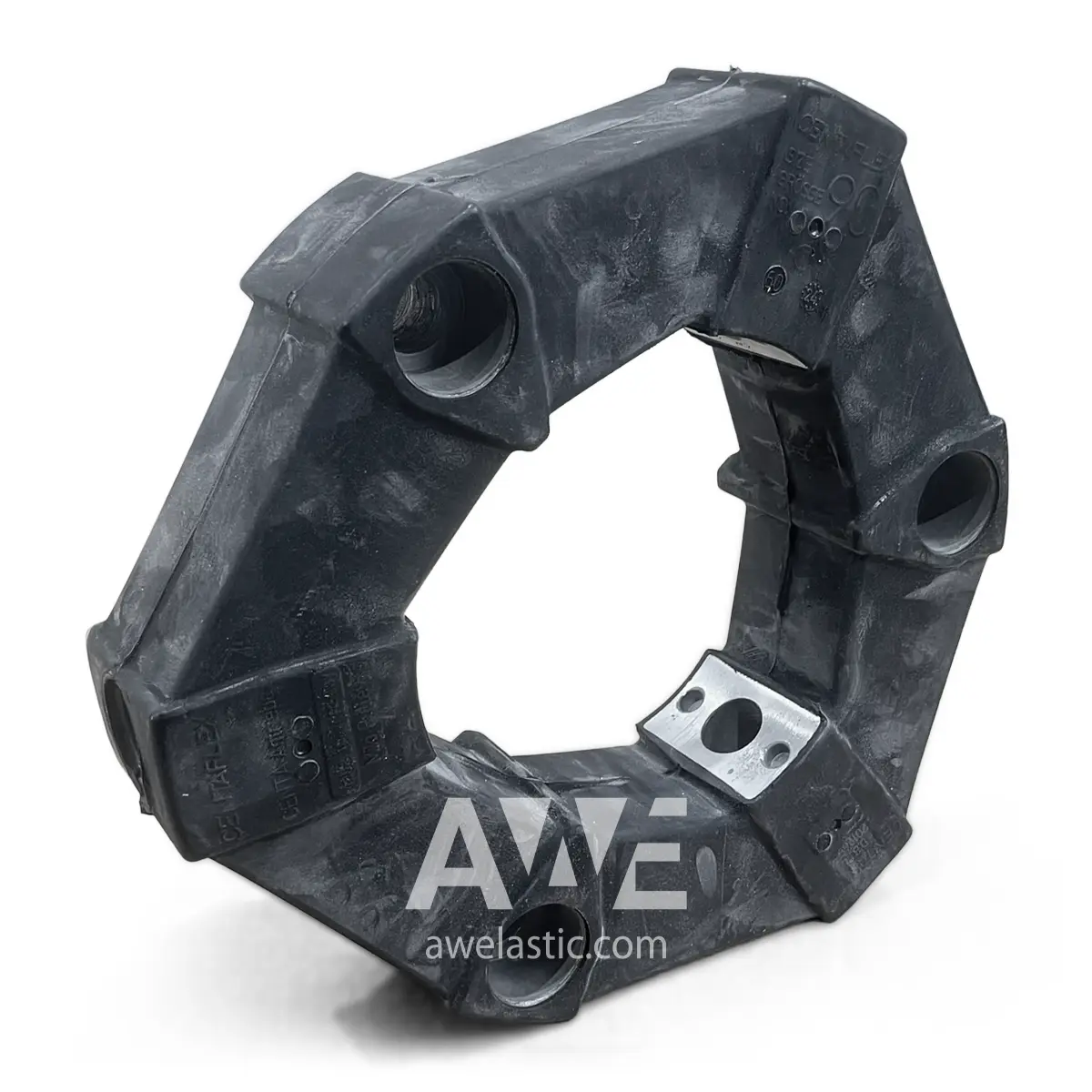

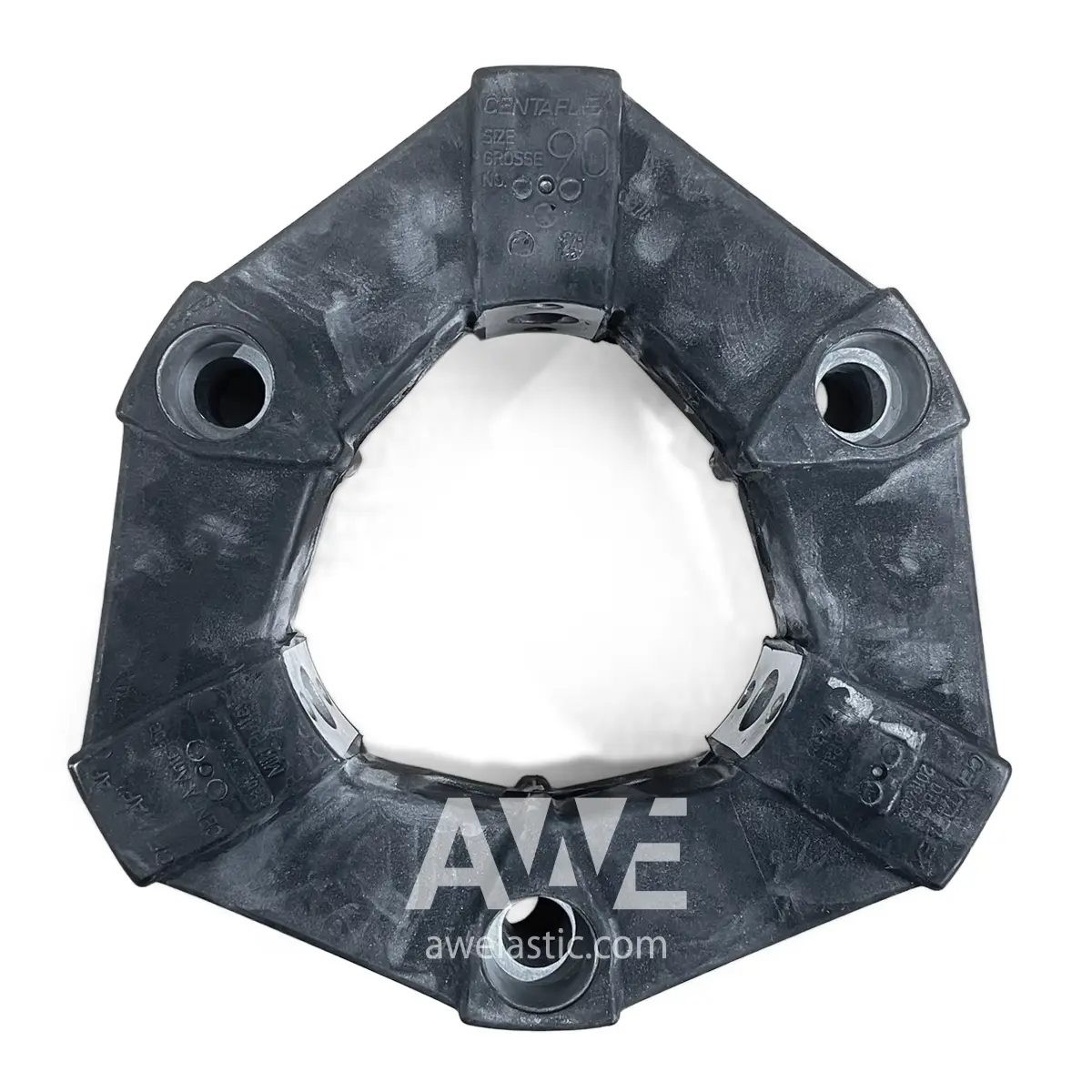

Centaflex 90A coupling CF-A-090-0-60 is a torsionally soft OEM elastic element developed by CENTA Germany for railway, marine, and industrial drives where torque precision and vibration control are essential.
Its Type 0 (bolt connection) provides secure, rigid mounting, while the 60 Shore natural-rubber compound ensures stable stiffness and enhanced heat resistance for continuous-duty operation.
Technical Specifications
• Nominal torque (TKN): 1.1 kNm
• Maximum torque (TKmax): 3.15 kNm
• Continuous vibratory torque (TKW): 0.45 kNm
• Maximum speed: 3600 rpm
• Temperature range (natural rubber): –45 °C to +80 °C
• Shore hardness: 60 Shore A
• Connection type: Type 0 – bolt connection
• ATEX certification: available on request
• Maximum torque (TKmax): 3.15 kNm
• Continuous vibratory torque (TKW): 0.45 kNm
• Maximum speed: 3600 rpm
• Temperature range (natural rubber): –45 °C to +80 °C
• Shore hardness: 60 Shore A
• Connection type: Type 0 – bolt connection
• ATEX certification: available on request
Typical Applications
• Railway powerpacks and auxiliary units
• Diesel and gas engine generator sets
• Industrial compressors and hydraulic systems
• Marine auxiliaries and propulsion equipment
• Stationary and mobile power modules
• Diesel and gas engine generator sets
• Industrial compressors and hydraulic systems
• Marine auxiliaries and propulsion equipment
• Stationary and mobile power modules
Fitment Type
Type 0 (Bolt Connection) – CENTA’s axial-radial mounting method for rigid installations requiring precise alignment and balanced torque delivery.
OEM Manufacturing Quality
Produced in Germany under CENTA’s ISO-certified standards, each CF-A-090-0-60 coupling ensures:
• OEM-verified torsional stiffness and TVA damping curve
• Accurate dimensional fit and alignment
• Durability under thermal and vibratory stress
• OEM-verified torsional stiffness and TVA damping curve
• Accurate dimensional fit and alignment
• Durability under thermal and vibratory stress
Why Choose Original CENTA Couplings
Aftermarket elements often lack material consistency and exact Shore control, leading to resonance or premature failure.
Only original CENTA Germany elements deliver OEM-tested torsional behavior and long-term reliability.
Only original CENTA Germany elements deliver OEM-tested torsional behavior and long-term reliability.

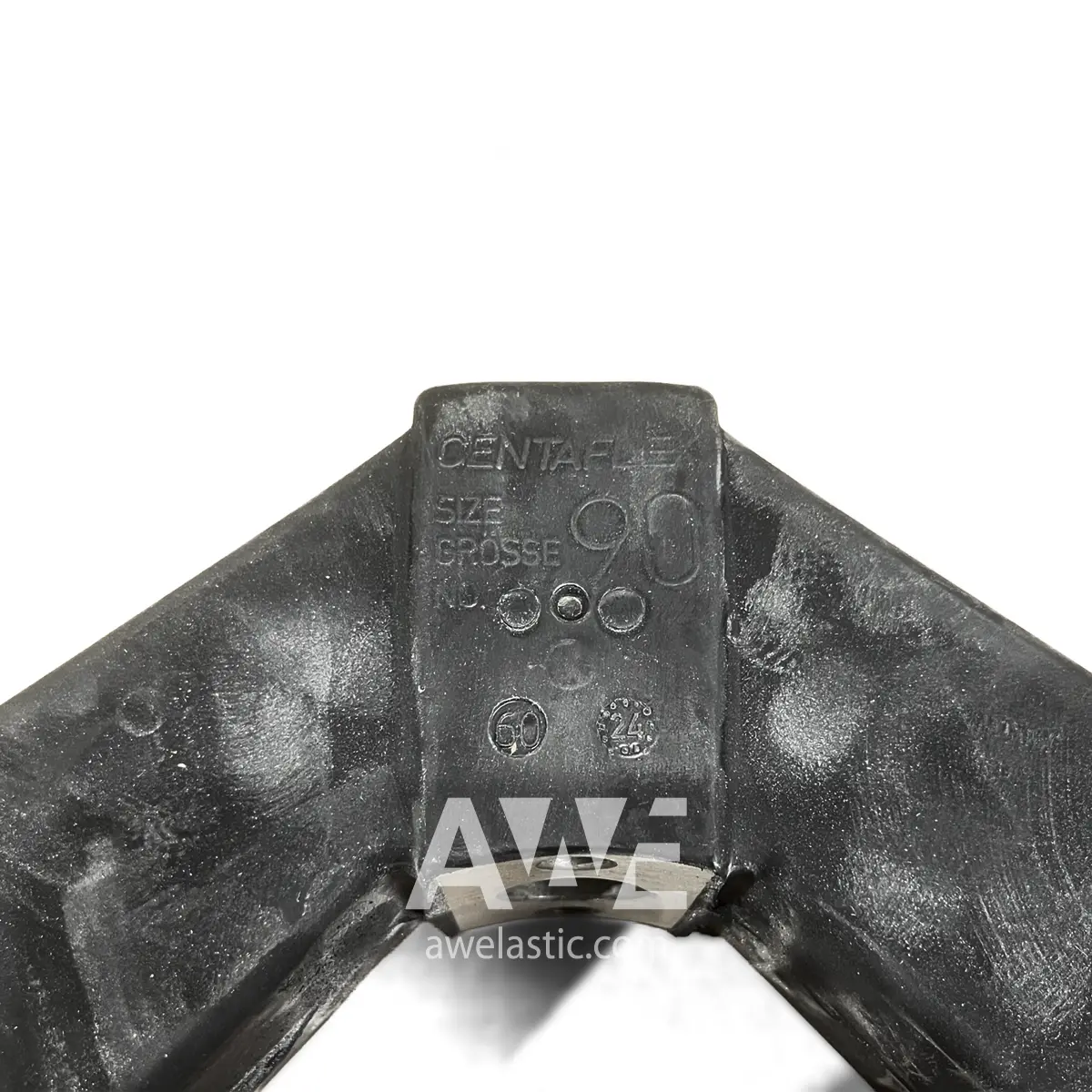

Identification and Patents
All authentic CENTAFLEX A couplings bear D.B.P. 2019608 and JAP.Pat. 778322, confirming OEM origin and global patent protection.
Further Documentation
Availability and Ordering
AWELASTIC.com supplies only new, original OEM CENTA elements from German stock with fast worldwide delivery and B2B support.
Product code: CF-A-090-0-60 | Type 0 (bolt connection) | Material: Natural Rubber 60 Shore A | Origin: Germany.
Product code: CF-A-090-0-60 | Type 0 (bolt connection) | Material: Natural Rubber 60 Shore A | Origin: Germany.
Keywords
Centaflex 90A coupling; CF-A-090-0-60; 90A coupling; OEM Centaflex Germany; 2019608; 778322; Centaflex bolt connection; Centaflex A 60 Shore; CENTA flexible coupling A 90; railway coupling; generator coupling; original vs copy Centaflex.
Additional information
| Weight | 3.24 kg |
|---|---|
| Dimensions | 35 × 35 × 10 cm |
| Centaflex A Type | |
| Centaflex A Size | |
| Centaflex A Shore | 60 |
| Material | |
| Temperature Range | –45 °C to +80 °C |
| Manufacturer | |
| Country of origin | Germany |
| Condition | OEM New |
