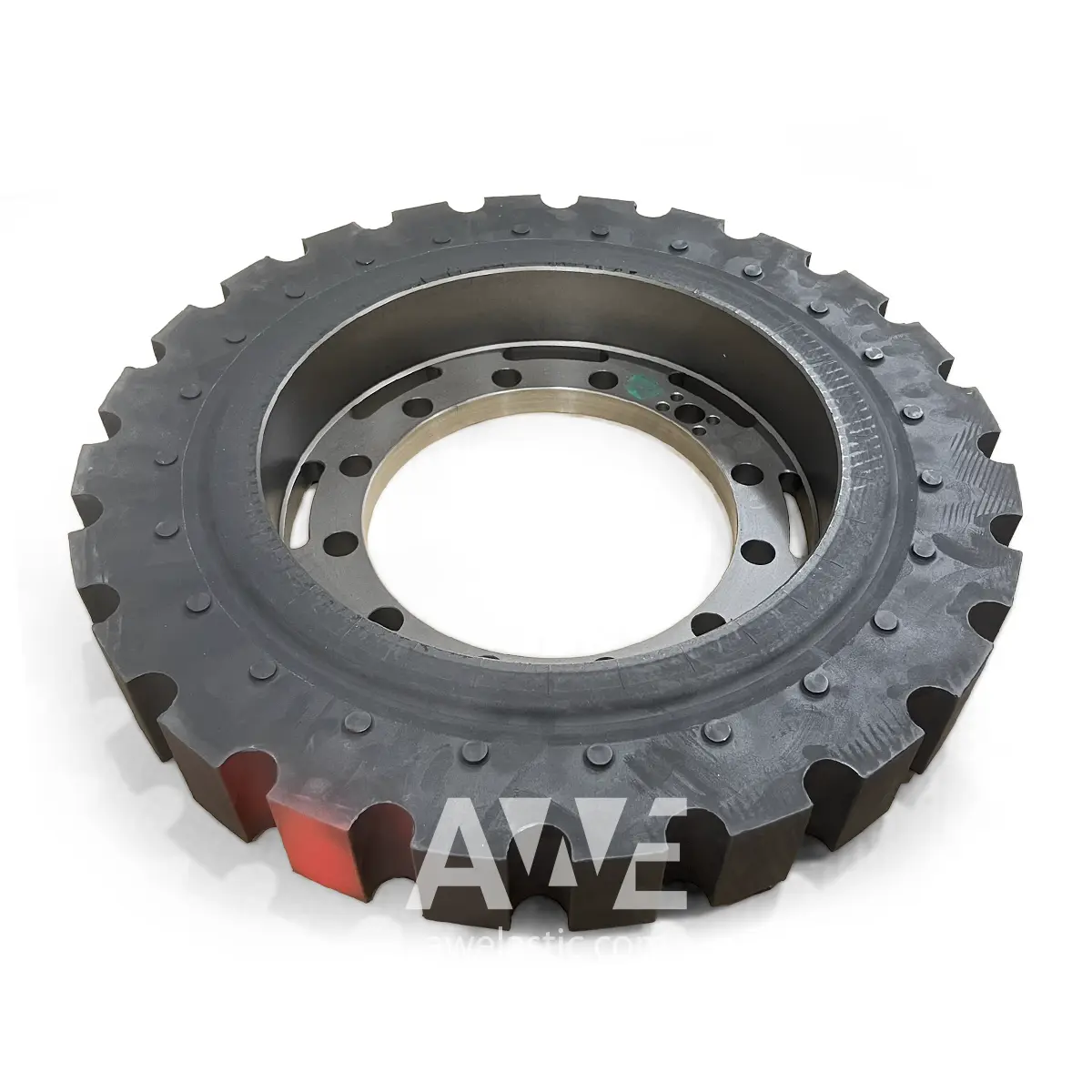

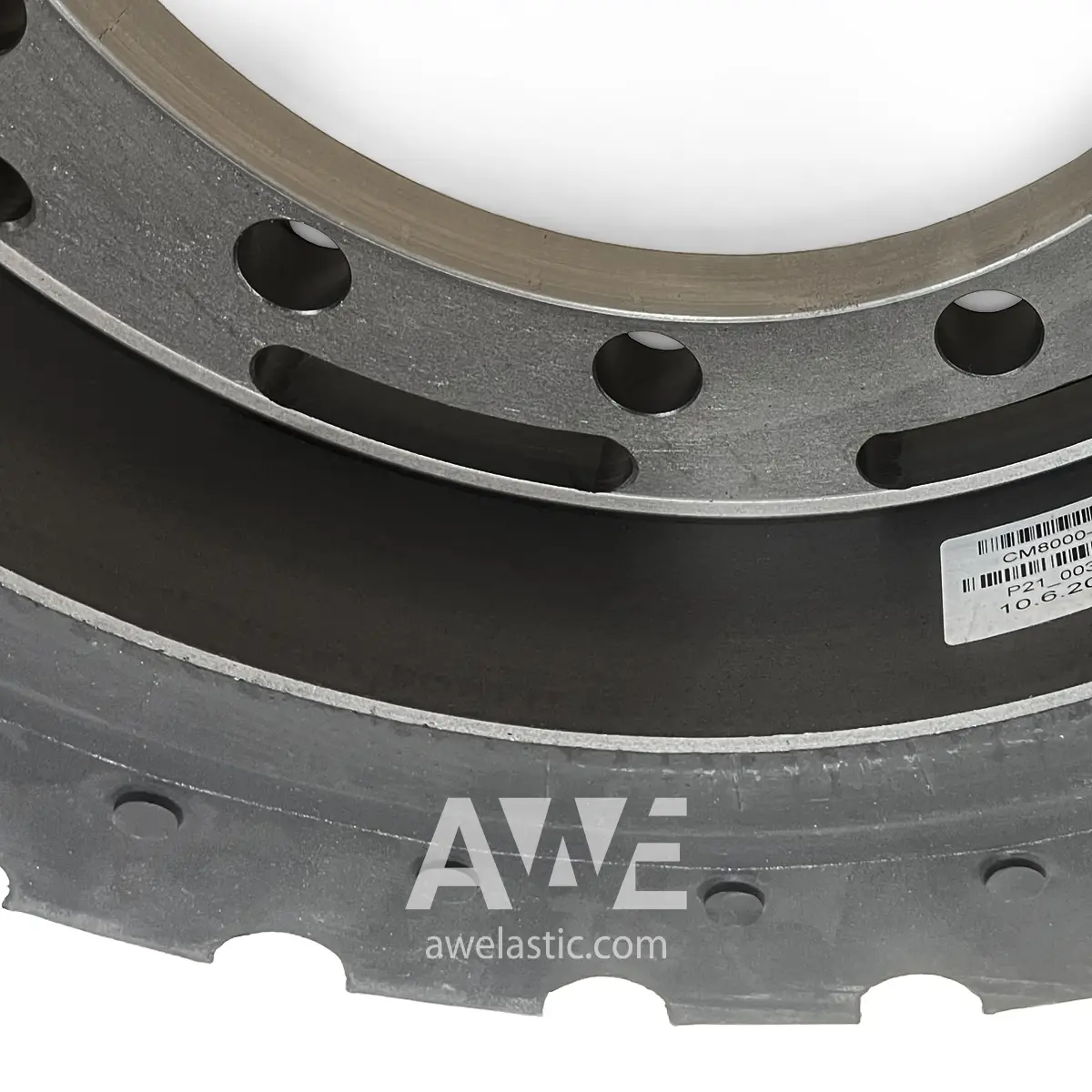

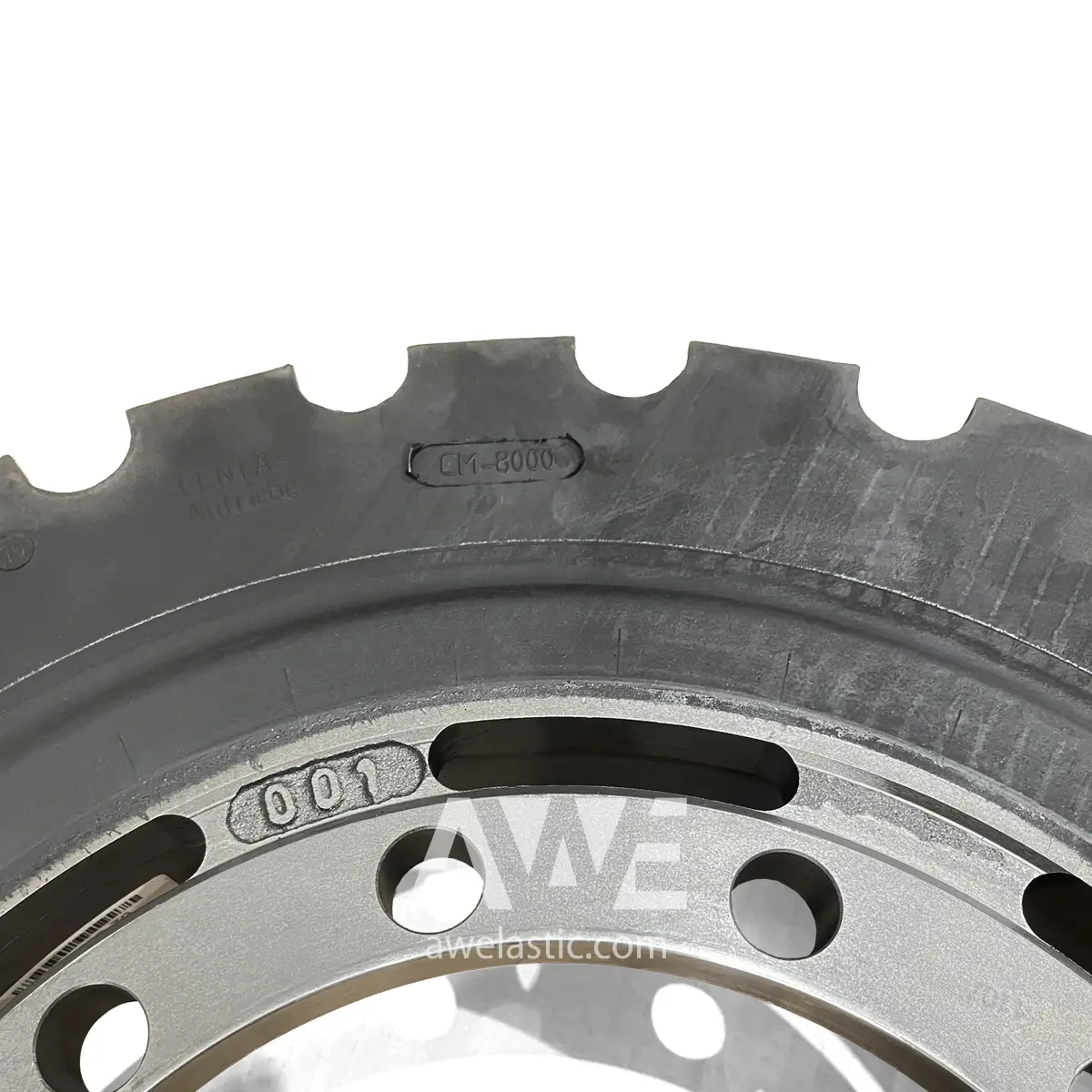

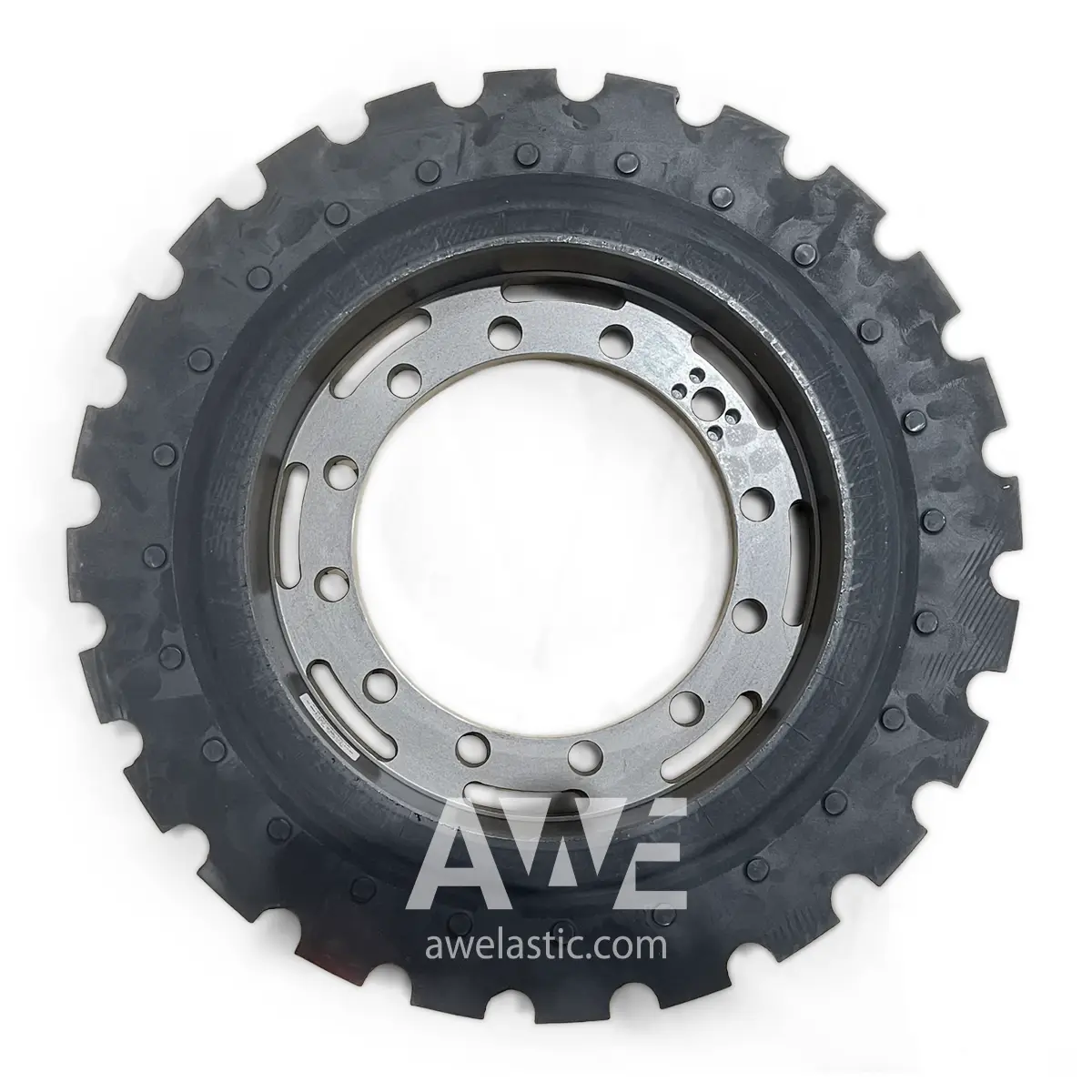

CENTAMAX 8000 NR Elastic Element – Type SC for Extreme Torque and Vibration Control
The CENTAMAX 8000 NR Type SC is a heavy-duty torsionally soft coupling element designed for the most demanding marine propulsion systems, generator drives, and industrial equipment. Manufactured from high-grade natural rubber, it delivers exceptional vibration damping, high torque capacity, and long-lasting reliability even in continuous operation.
This size is engineered for very large diesel engines, offshore gensets, and critical industrial drives operating under intense mechanical stress. The Type SC version features standard plain mounting holes, allowing direct bolt-through installation with OEM hubs or SAE flywheel interfaces.
We supply only new, original CENTAMAX CM-8000 elements — no copies — and keep this size in stock for fast international delivery.
Technical Specifications (CENTAMAX Size 8000 NR / CM-8000 SC)
- Available Shore Hardness: 50, 60, 70, 72, 75
- Nominal Torque (Tₖₙ): 8,000–12,000 Nm (depending on Shore)
- Maximum Torque (Tₖₘₐₓ): 16,000–25,000 Nm (depending on Shore)
- Max Speed (nₘₐₓ): 2,000 - 2,500 rpm
- Temperature Range (NR): –45 °C to +80 °C
- Material: Natural Rubber (NR), black color
- Flywheel Standard: SAE J620 – typically SAE 18, SAE 21, SAE 24
- Design: Plug-in rubber element, Type SC with plain holes for standard bolt-through mounting
Fitment Type: SC – Standard Plain Hole Mounting
The SC version of the CENTAMAX 8000 includes plain holes for straightforward, OEM-compliant bolt-through installation. This is the most widely used fitment type for this size and is compatible with standard SAE flywheels and CENTA hubs.
Applications of CENTAMAX 8000 SC
- Marine Main Propulsion Systems: For large diesel engines in commercial vessels and offshore platforms
- Power Generation Units: Used in high-capacity gensets with frequent load changes
- Heavy Mining & Processing Equipment: Effective in crushers, grinding mills, and drive trains under extreme torque
Industrial Drives: Ensures vibration isolation and torsional safety in large mechanical systems
Why Choose Original CENTAMAX 8000 SC?
- Built for Extreme Load Conditions – Proven in marine and industrial systems worldwide
- OEM-Certified Quality – Developed in partnership with engine manufacturers for perfect compatibility
- New & In Stock – CENTAMAX 8000 SC natural rubber elements are ready for immediate shipping
- No Aftermarket Risk – We sell only genuine CENTAMAX parts with full traceability and quality assurance
Keywords:
CENTAMAX 8000 coupling element; CM-8000-50; CM-8000-60; CM-8000-70; Natural rubber elastic element size 8000; OEM CENTAMAX 8000 part; marine engine coupling CM-8000; high torque SAE 22.5 rubber element; CENTAMAX SC fitment
Additional information
| Weight | 25 kg |
|---|---|
| Dimensions | 55 × 55 × 20 cm |
| Centamax Shore | 60, 70, 72, 75 |
