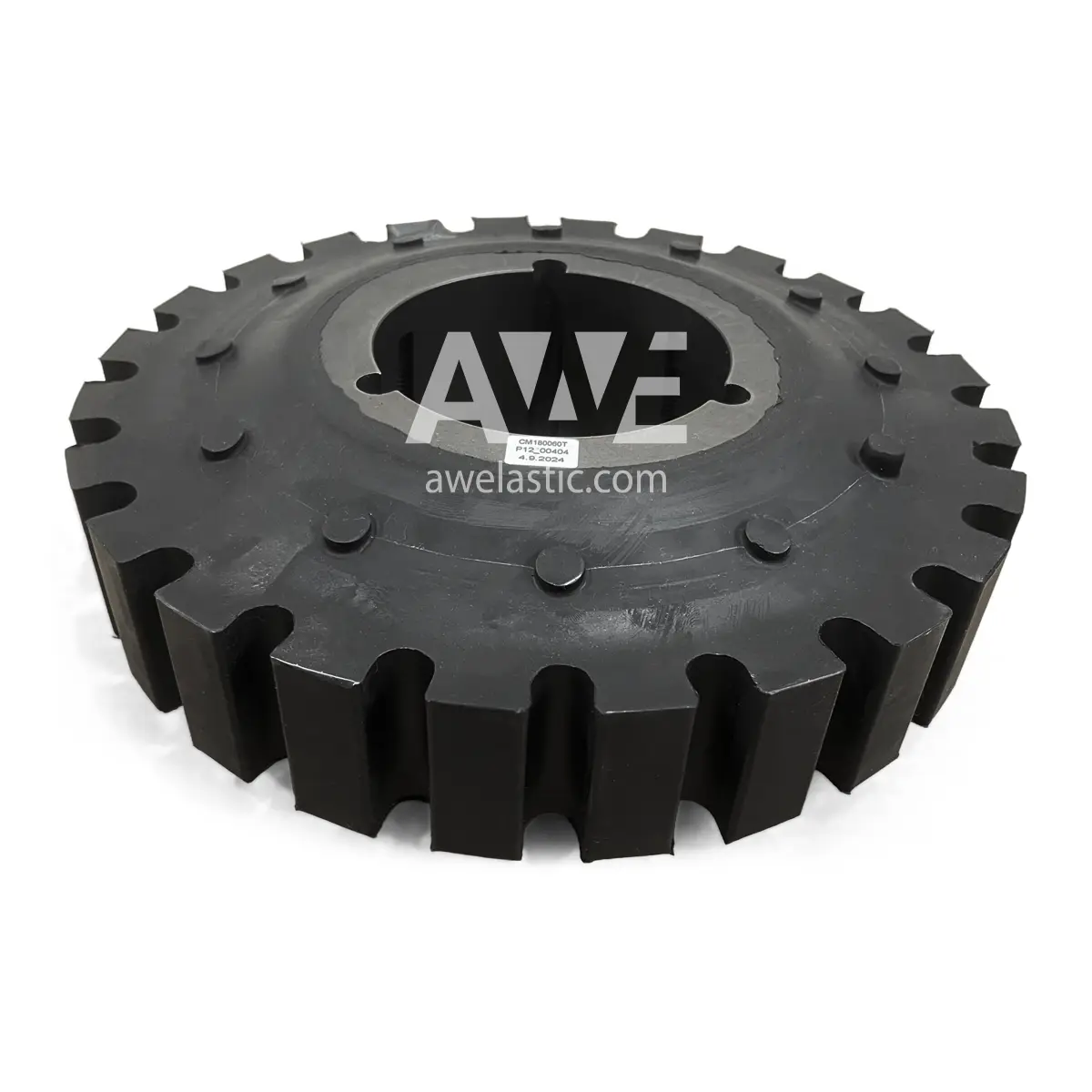

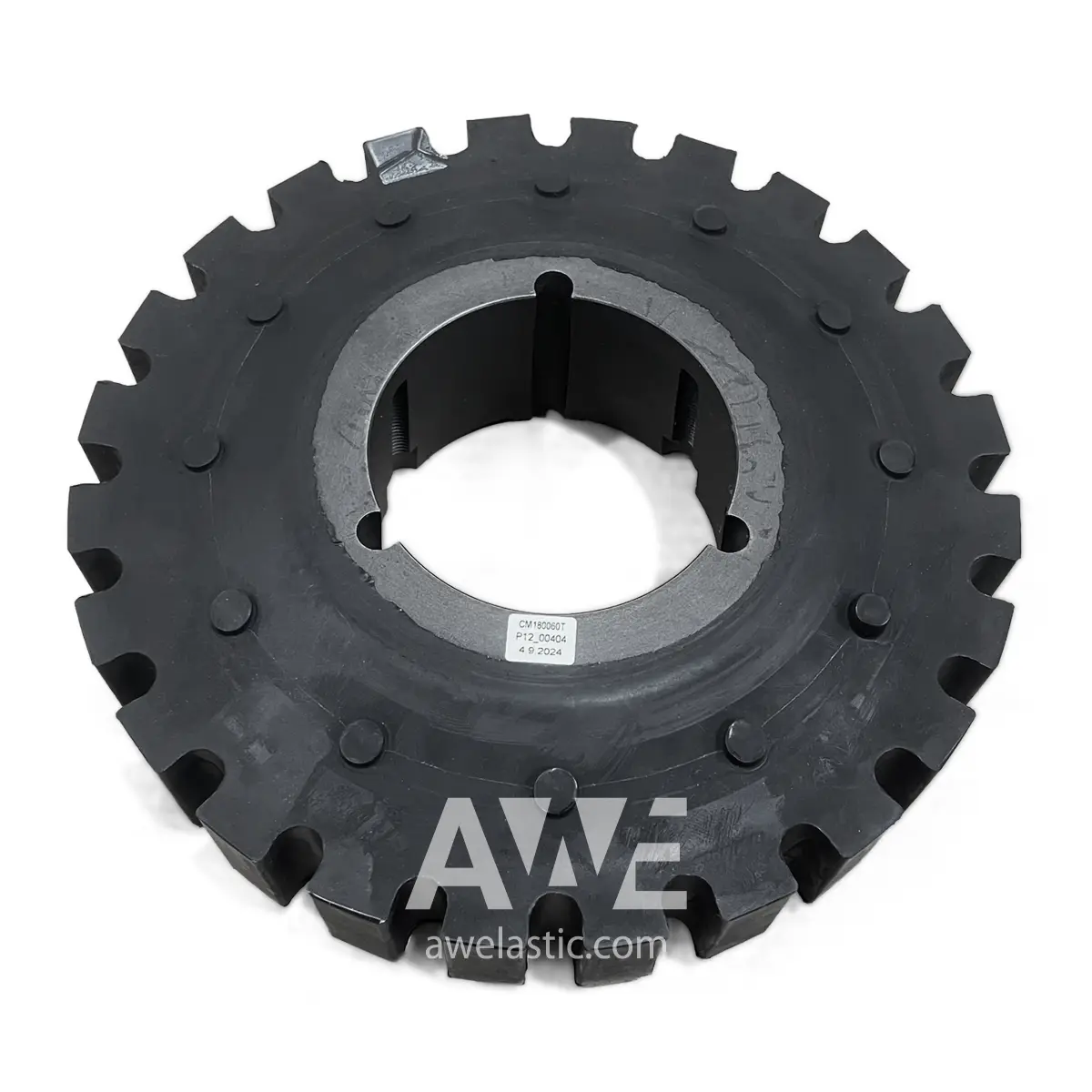

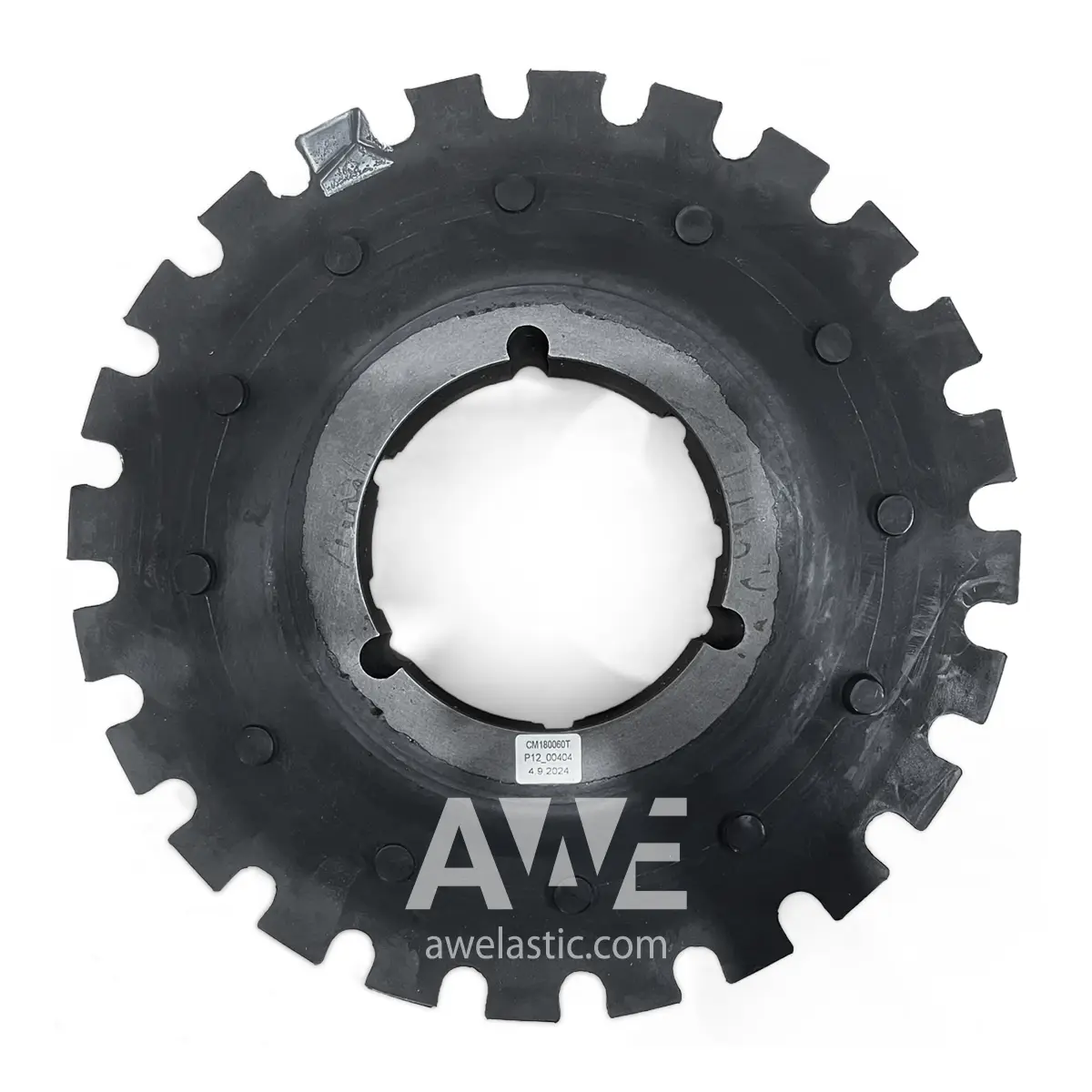

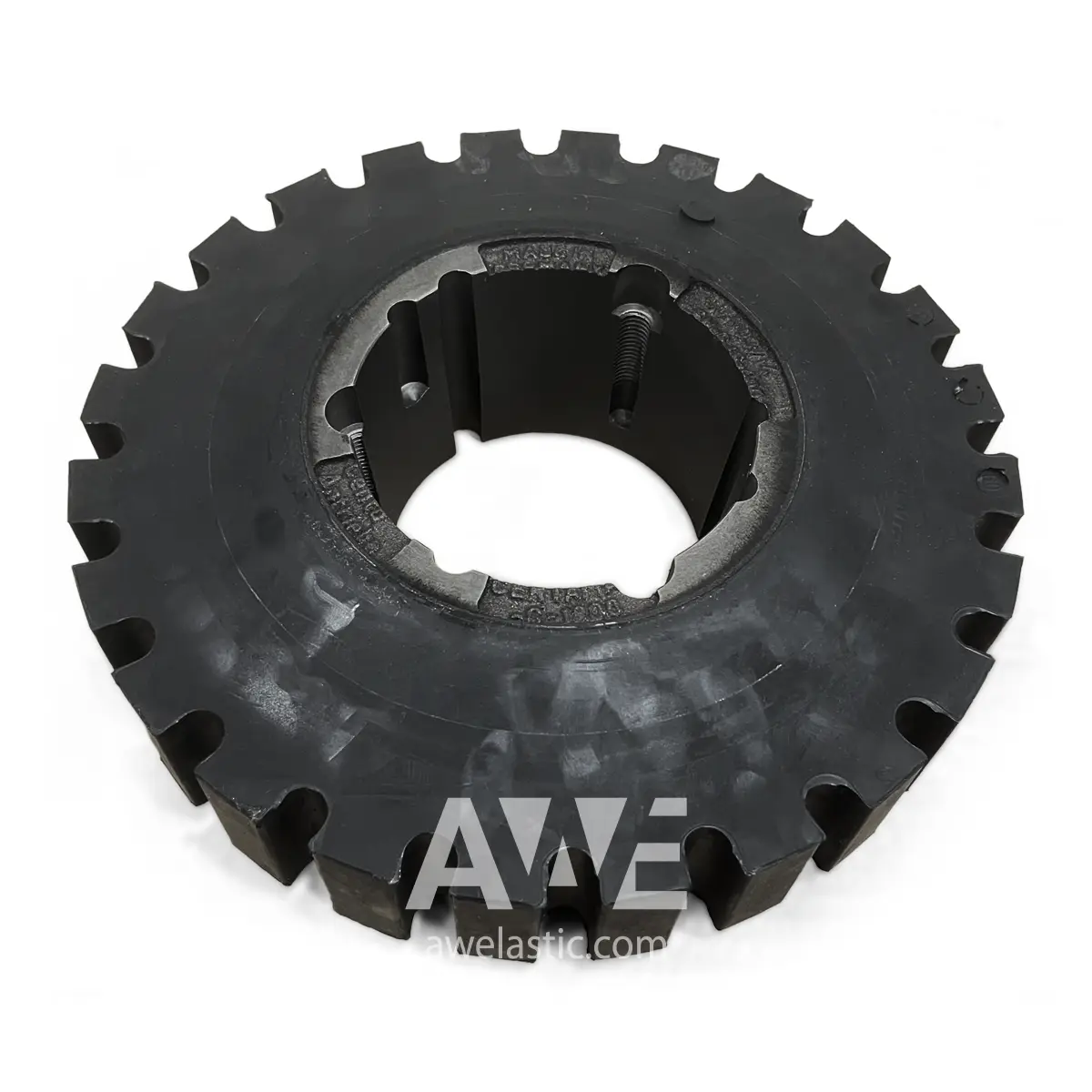

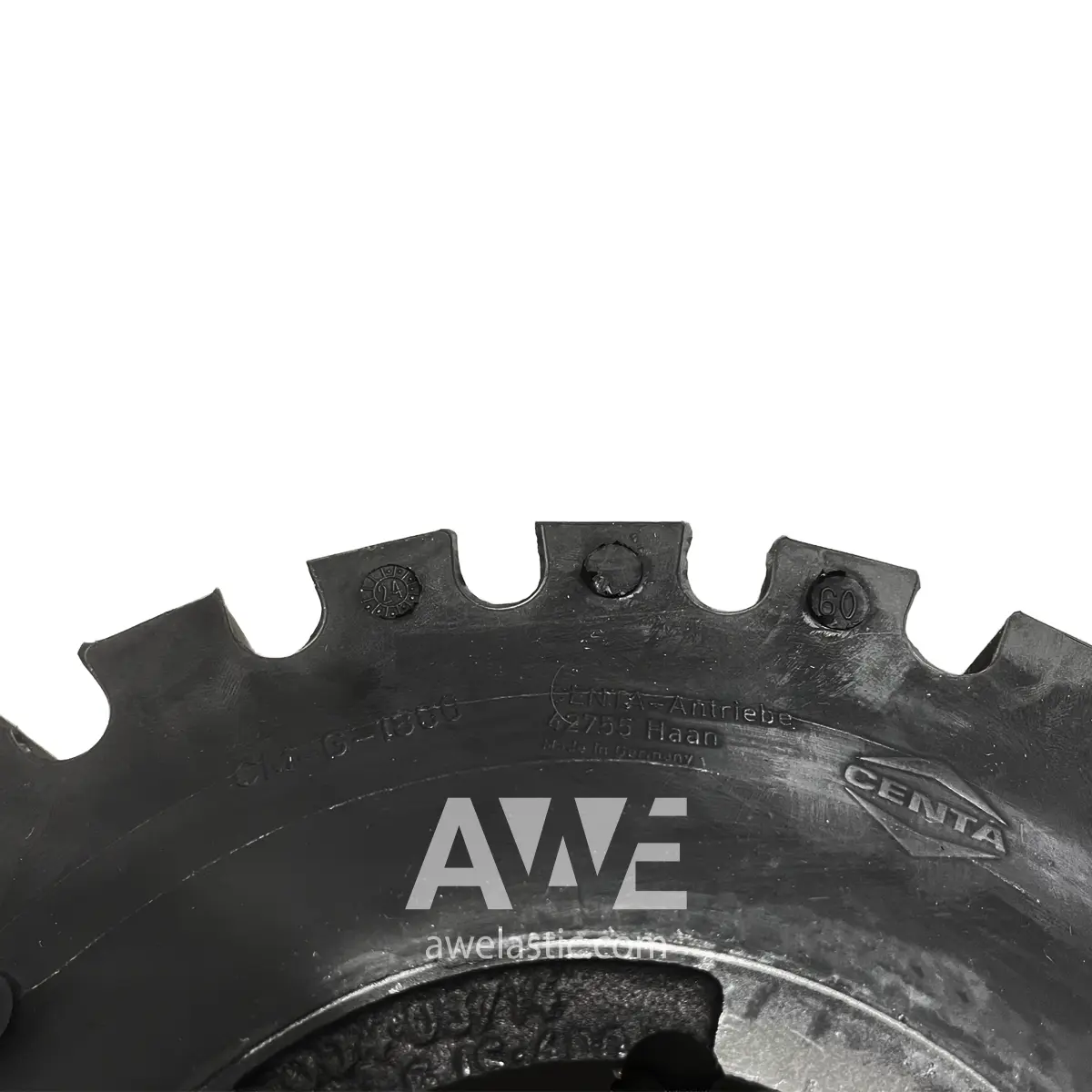

CENTAMAX-G 1800 Coupling | Original CENTA CM-G-1800 for Generator Drives
Equipped with a taper-lock bush (Type 3535) for fast, reliable mounting, the CM-G-1800 NR offers backlash-free torque transmission, compensation of misalignments, and dependable thermal performance thanks to CENTA’s efficient ventilation design.
Awelastic supplies only new, genuine OEM CENTAMAX-G 1800 NR elements, kept in stock for immediate dispatch.
Technical Specifications – CENTAMAX-G 1800 (NR)
- Rubber Quality: NR (Natural Rubber)
- Available Shore Hardness: 50, 60, 70, 72, 75
- Nominal Torque (TKN): 1800–2800 Nm (depending on Shore)
- Maximum Torque (TKmax): 3600–7000 Nm
- Continuous Vibratory Torque (TKW): 720–1120 Nm
- Permissible Power Loss (PKV): 265–330 W
- Dynamic Torsional Stiffness: 6600–140,000 Nm/rad
- Relative Damping: 1.05–1.40
- Maximum Speed (nmax): 3000–3200 rpm
- Hub Type: Taper 3535 (also Stiebel version available)
Flywheel Compatibility: SAE (multiple sizes supported)
Key Features
- Designed for gensets: optimized for torsionally active generator drive systems.
- High torsional flexibility: shifts harmful resonances out of operating range.
- Backlash-free torque transfer due to interlocked outer ring.
- Fast installation: includes taper-lock bush for quick assembly.
- Excellent heat dissipation: ensures longer coupling life.
Compensates misalignment: axial, radial, and angular flexibility.
Typical Applications
- Marine & industrial diesel generator sets
- Emergency power systems
- Auxiliary generator units
- Stationary & mobile power generation
- Drives requiring torsional vibration damping
Why Choose Original CENTAMAX-G 1800 NR?
- OEM Material Quality: exact Shore hardness and damping values tested by CENTA.
- Certified Fitment: compatible with DIN 6281 generator standards and SAE flywheels.
- Long Service Life: original NR compound ensures correct thermal and torsional response.
- In Stock, Fast Worldwide Delivery: AWELASTIC ships it worldwide in shortest possible time.
- No Aftermarket Copies: only genuine CENTA components.
Keywords:
centamax g 1800; cm-g-1800 NR; centamax-g coupling 1800; centa g-series coupling; generator coupling cm-g-1800; taper lock 3535 coupling; sae flywheel coupling G1800; OEM genset coupling 1800 NR; centamax G 1800 shore 50 60 70 72 75.
Additional information
| Weight | 10 kg |
|---|---|
| Dimensions | 45 × 45 × 20 cm |
| Fitment | |
| Size | |
| Material | |
| Centamax Shore Hardness | 50, 60, 70, 72, 75 |
| Temperature Range | –45 °C to +80 °C |
| Manufacturer | |
| Country of origin | Germany |
| Condition | OEM New |
